VISHAYDatasheet (PDF)

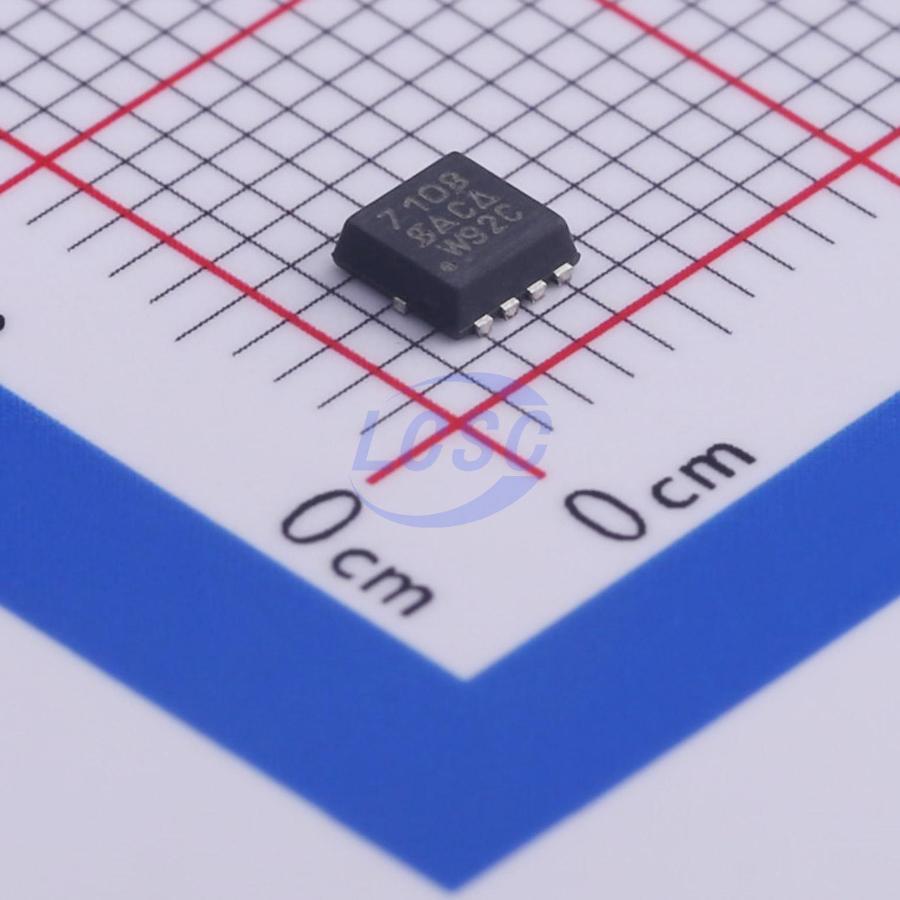

SI7108DN-T1-GE3
3.8W 20V 22A 4.9mΩ@10V 1 N-channel N-Channel PowerPAK1212-8 Single FETs, MOSFETs RoHS
PowerPAK1212-8ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7108DN-T1-GE3
- Store part #
- C467906
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,986 in stock
#C467906
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.90 | ₹99.90 |
| 10+ | ₹79.70 | ₹797.00 |
| 30+ | ₹69.71 | ₹2,091.30 |
| 100+ | ₹59.72 | ₹5,972.00 |
| 500+ | ₹53.65 | ₹26,825.00 |
| 1,000+ | ₹50.60 | ₹50,600.00 |
1 × ₹99.90
₹99.90
excl. GST
₹117.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7108DN-T1-GE3
₹99.90 for 1 + GST
Specifications
- Ciss-Input Capacitance
- 6pF
- Pd - Power Dissipation
- 3.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 22A
- Reverse Transfer Capacitance (Crss)
- 1pF
- RDS(on)
- 4.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
Applications
- Synchronous rectification
- Point-of-load converters
- Protection devices
- Hot swap
Key features
- Halogen-free options available
- Power MOSFET with second-generation TrenchFET Gen II technology, featuring ultra-low on-resistance
- New low thermal resistance PowerPAK package, height only 1.07 mm
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB50N02#C22359232HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 1,445 | ₹21.86 · 1,445 in stock | View |
 | SISH402DN-T1-GE3#C6296769VISHAY · PowerPAK1212-8SH | VISHAY | PowerPAK1212-8SH | 3,000 | ₹139.46 · 3,000 in stock | View |
 | CMSC3050#C53896394Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 115 | ₹19.43 · 115 in stock | View |
 | MS3005X#C47361175MIRACLE POWER · PDFN-8(3.3x3.3) | MIRACLE POWER | PDFN-8(3.3x3.3) | 5,005 | ₹18.14 · 5,005 in stock | View |
 | BSZ010NE2LS5#C534638Infineon · TSDSON-8(3.3x3.3) | Infineon | TSDSON-8(3.3x3.3) | 28 | ₹285.56 · 28 in stock | View |
