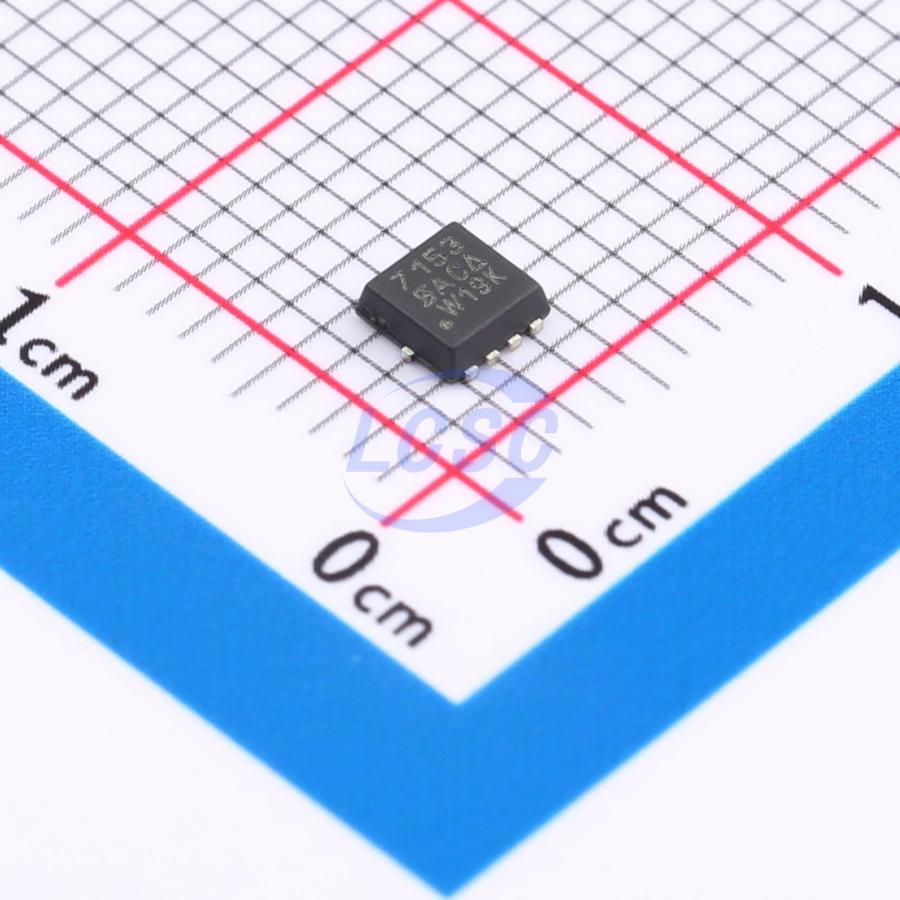

SI7153DN-T1-GE3

P-Channel 30 V (D-S) MOSFET。MOSFETs for switching applications are now available with die on resistances around 1 mΩ and with the capability to handle 85 A. PowerPAK is a new package technology that addresses these issues. The PowerPAK 1212-8 provides ultra-low thermal impedance in a small package that is ideal for space-constrained applications. The PowerPAK 1212-8 package is a derivative of PowerPAK SO-8. It utilizes the same packaging technology, maximizing the die area. The bottom of the die attach pad is exposed to provide a direct, low resistance thermal path to the substrate the device is mounted on. The PowerPAK 1212-8 has a footprint area comparable to TSOP-6. It is over 40% smaller than standard TSSOP-8. Its die capacity is more than twice the size of the standard TSOP-6’s. It has thermal performance an order of magnitude better than the SO-8, and 20 times better than TSSOP-8. Its thermal performance is better than all current SMT packages in the market. It will take the advantage of any PC board heat sink capability. Bringing the junction temperature down also increases the die efficiency by around 20% compared with TSSOP-8. For applications where bigger packages are typically required solely for thermal consideration, the PowerPAK 1212-8 is a good option. The low 1.05 mm PowerPAK height profile makes both versions an excellent choice for applications with space constraints.

Applications

• Adaptor switch
• Load switch
• Power management

Key features

• TrenchFET Gen. III P-Channel power MOSFET
• 100% Rg and UIS tested
