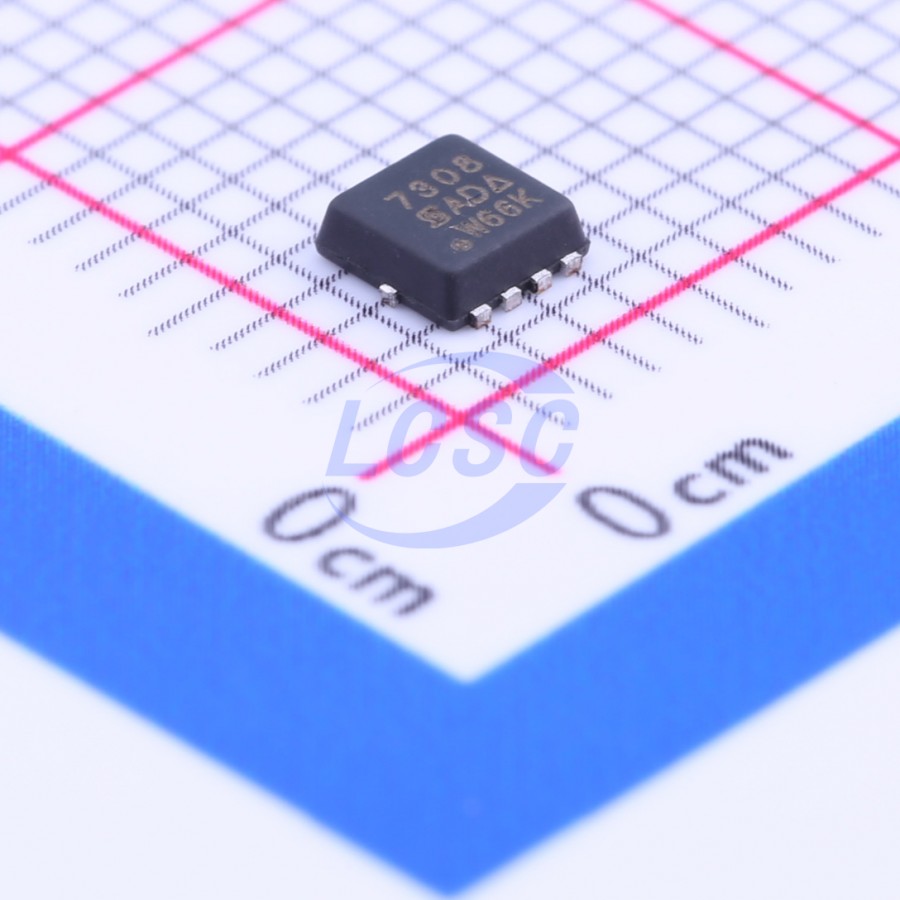

SI7308DN-T1-E3
N-Channel 60V 6A 19.8W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantDiscontinued
MOSFET N-CH 60V 6A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7308DN-T1-E3
- Store part #
- C142619
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9 in stock
#C142619
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.43 | ₹108.43 |
| 10+ | ₹106.05 | ₹1,060.50 |
| 30+ | ₹104.31 | ₹3,129.30 |
| 100+ | ₹102.78 | ₹10,278.00 |
1 × ₹108.43
₹108.43
excl. GST
₹127.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7308DN-T1-E3
₹108.43 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 75pF
- Ciss-Input Capacitance
- 665pF
- Pd - Power Dissipation
- 19.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 6A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 72mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.176 g
Overview
N-Channel MOSFET, the PowerPAK 1212-8 offers an ultra-low thermal impedance solution in a compact package, making it ideal for space-constrained applications. It is a derivative of the PowerPAK SO-8, utilizing the same packaging technology to maximize die area. The exposed die attach pad on the bottom provides a direct, low-resistance thermal path to the substrate on which the device is mounted. The PowerPAK 1212-8 brings the advantages of the PowerPAK SO-8 into a smaller footprint while maintaining the same level of thermal performance.
Applications
- CCFL Inverter
- Class-D Amp
Key features
- Halogen-free According to IEC 61249-2-21 Available
- TrenchFET Power MOSFET
- Low Thermal Resistance PowerPAK Package with Small Size and Low 1.07 mm Profile
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPNVTFS5C680NLTAG#C49230913TECH PUBLIC · PDFN-8(3x3) | TECH PUBLIC | PDFN-8(3x3) | 4,985 | ₹41.86 · 4,985 in stock | View |
 | AON7254#C131418AOS · DFN-8(3.3x3.3) | AOS | DFN-8(3.3x3.3) | 23,600 | ₹113.87 · 23,600 in stock | View |
 | CMSC2922A#C22449535Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 50 | ₹18.84 · 50 in stock | View |
 | DMN6069SFG-7#C326514DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 1,041 | ₹61.27 · 1,041 in stock | View |
 | CMSC045N15#C41410548Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 5,233 | ₹57.92 · 5,233 in stock | View |
