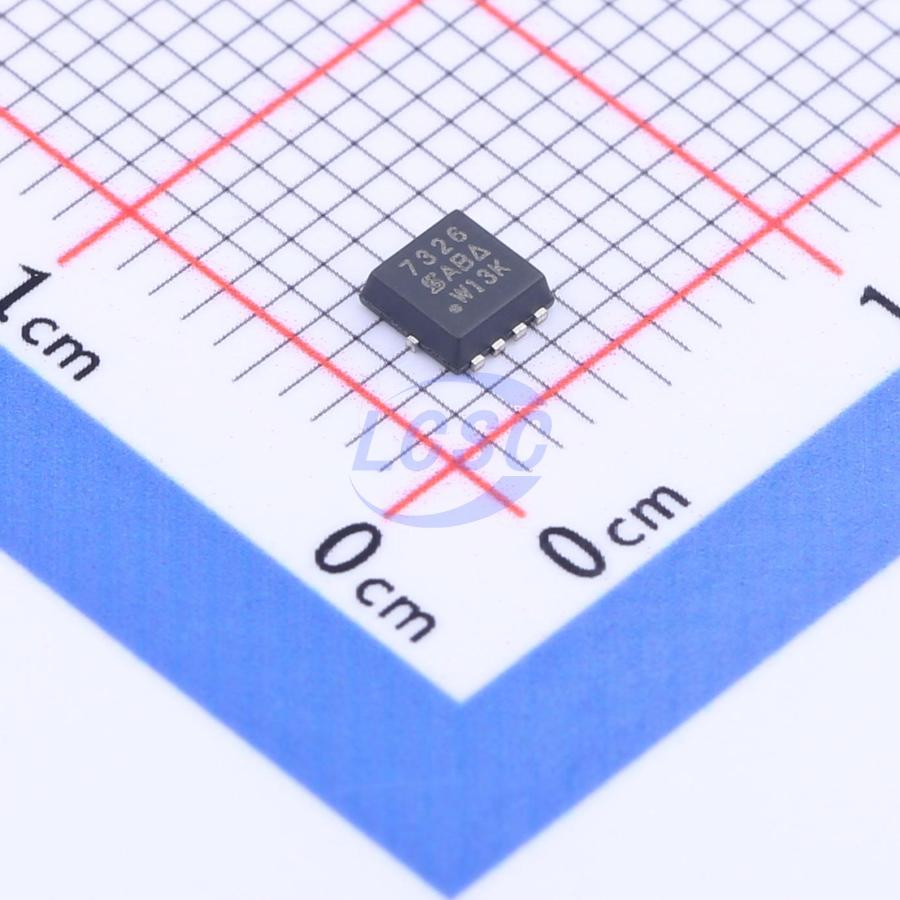

SI7326DN-T1-GE3
N-Channel 30V 6.5A 1.5W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS CompliantActive
MOSFET N-CH 30V 6.5A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7326DN-T1-GE3
- Store part #
- C727506
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,245 in stock
#C727506
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹42.57 | ₹42.57 |
| 10+ | ₹37.60 | ₹376.00 |
| 30+ | ₹35.44 | ₹1,063.20 |
| 100+ | ₹32.64 | ₹3,264.00 |
| 500+ | ₹31.34 | ₹15,670.00 |
| 1,000+ | ₹30.69 | ₹30,690.00 |
1 × ₹42.57
₹42.57
excl. GST
₹50.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7326DN-T1-GE3
₹42.57 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 6.5A
- Pd - Power Dissipation
- 1.5W
- RDS(on)
- 19.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 13nC@5V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.179 g
Overview
Applications
- DC/DC Conversion
- N-Channel MOSFET
Key features
- Halogen-free According to IEC 61249-2-21 Available
- TrenchFET Power MOSFET
- New Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- 100 % Rg Tested
- RoHS COMPLIANT HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBB3002#C508820HUASHUO · PRPAK3x3-8L | HUASHUO | PRPAK3x3-8L | 1,295 | ₹11.46 · 1,295 in stock | View |
 | DMN3029LFG-13#C397944DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 20 | ₹37.14 · 20 in stock | View |
 | AGM18N10AP#C7509649AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 17,900 | ₹31.39 · 17,900 in stock | View |
| BXK9Q29-60EJ#C24750518Nexperia · SOT8002-3 | Nexperia | SOT8002-3 | 5,965 | ₹16.76 · 5,965 in stock | View | |
 | AGM406MBP#C5349114AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 55 | ₹34.65 · 55 in stock | View |
