HXY MOSFETDatasheet (PDF)

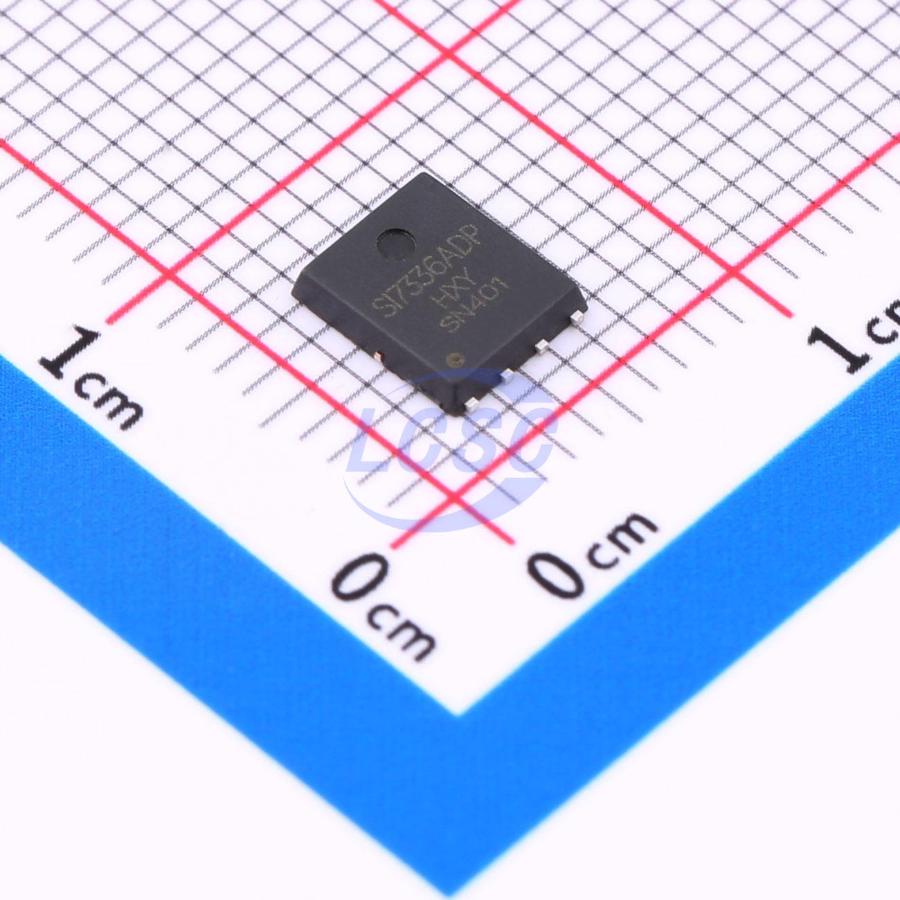

SI7336ADP-T1-E3-HXY
N-Channel 30V 150A 187W Surface Mount DFN5x6-8L
DFN5x6-8LRoHSActive
MOSFET N-CH 30V 150A DFN5x6-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SI7336ADP-T1-E3-HXY
- Store part #
- C22366653
- Package / case
- DFN5x6-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C22366653
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹106.09 | ₹106.09 |
| 10+ | ₹86.43 | ₹864.30 |
| 30+ | ₹76.71 | ₹2,301.30 |
| 100+ | ₹66.98 | ₹6,698.00 |
| 500+ | ₹61.15 | ₹30,575.00 |
| 1,000+ | ₹58.13 | ₹58,130.00 |
1 × ₹106.09
₹106.09
excl. GST
₹125.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7336ADP-T1-E3-HXY
₹106.09 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 340pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 4.345nF
- Pd - Power Dissipation
- 187W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56.9nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Overview
The SI7336ADP-T1-E3 employs advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. This device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-source voltage (VDS) = 30V, drain current (ID) = 150A
- On-resistance (RDS(ON)) < 2.4mΩ at gate-source voltage (VGS) = 10V
