VISHAYDatasheet (PDF)

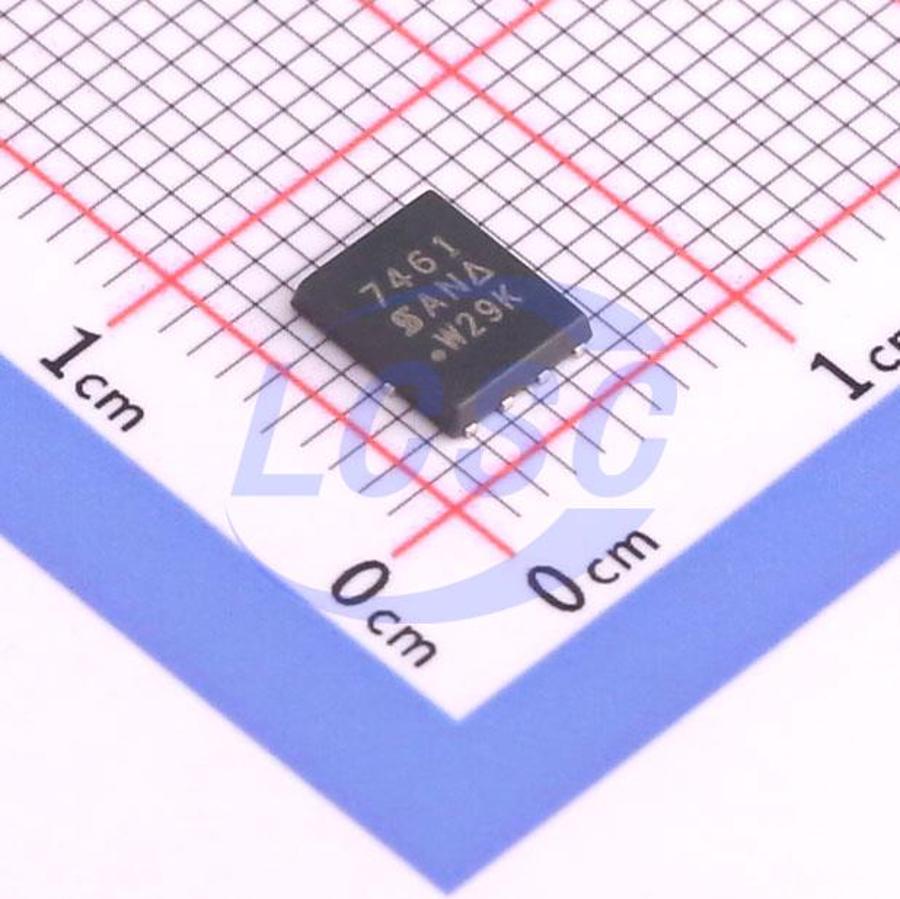

SI7461DP-T1-GE3
P-Channel 60V 14.4A 3.4W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET P-CH 60V 14.4A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7461DP-T1-GE3
- Store part #
- C553968
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,147 in stock
#C553968
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹445.60 | ₹445.60 |
| 10+ | ₹386.30 | ₹3,863.00 |
| 30+ | ₹349.03 | ₹10,470.90 |
| 100+ | ₹310.88 | ₹31,088.00 |
| 500+ | ₹293.65 | ₹1,46,825.00 |
| 1,000+ | ₹286.24 | ₹2,86,240.00 |
1 × ₹445.60
₹445.60
excl. GST
₹525.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI7461DP-T1-GE3
₹445.60 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 14.4A
- Pd - Power Dissipation
- 3.4W
- RDS(on)
- 14.5mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 190nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.248 g
Overview
MOSFETs for switching applications are now available with die on resistances around 1 mΩ and with the capability to handle 85 A. PowerPAK is a new package technology that addresses these issues. The PowerPAK SO - 8 utilizes the same footprint and the same pin - outs as the standard SO - 8. This allows PowerPAK to be substituted directly for a standard SO - 8 package. Being a leadless package, PowerPAK SO - 8 utilizes the entire SO - 8 footprint, freeing space normally occupied by the leads, and thus allowing it to hold a larger die than a standard SO - 8. The bottom of the die attach pad is exposed for the purpose of providing a direct, low resistance thermal path to the substrate the device is mounted on. The package height is lower than the standard SO - 8, making it an excellent choice for applications with space constraints.
Key features
- TrenchFET power MOSFETs
- Low thermal resistance PowerPAK package with low 1.07 mm profile
- RoHS COMPLIANT HALOGEN FREE Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7461DP#C7472880TECH PUBLIC · PowerPAK-SO-8 | TECH PUBLIC | PowerPAK-SO-8 | 1,553 | ₹157.11 · 1,553 in stock | View |
 | CMSA80P06A#C22364965Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 9,635 | ₹59.97 · 9,635 in stock | View |
 | SP010P16GHNK#C54102091Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | On request | ₹90.28 · 0 in stock | View |
 | HSBA8119#C22359243HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,866 | ₹154.29 · 2,866 in stock | View |
 | SI7469DP-T1-GE3#C467910VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 8,543 | ₹203.09 · 8,543 in stock | View |
