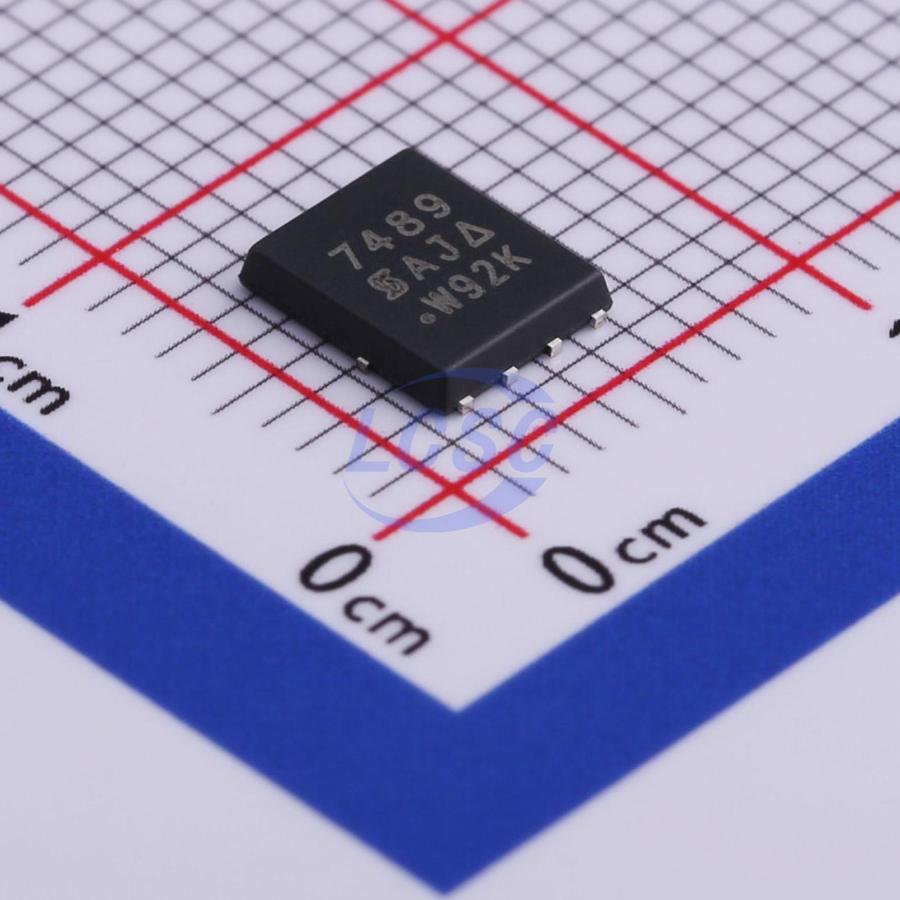

SI7489DP-T1-GE3
P-Channel 100V 28A 53W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET P-CH 100V 28A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SI7489DP-T1-GE3
- Store part #
- C499484
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C499484
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹595.40 | ₹595.40 |
| 10+ | ₹512.68 | ₹5,126.80 |
| 30+ | ₹463.70 | ₹13,911.00 |
| 100+ | ₹413.85 | ₹41,385.00 |
| 500+ | ₹390.99 | ₹1,95,495.00 |
| 1,000+ | ₹380.53 | ₹3,80,530.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Output Capacitance(Coss)
- 230pF
- Ciss-Input Capacitance
- 4.6nF
- Pd - Power Dissipation
- 53W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 28A
- Reverse Transfer Capacitance (Crss)
- 175pF
- RDS(on)
- 41mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 54nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.126 g
Overview
Key features
- Halogen-free According to IEC 61249-2-21 Available
- TrenchFET Power MOSFET
- RoHS COMPLIANT HALOGEN FREE Available
- P-Channel MOSFET
