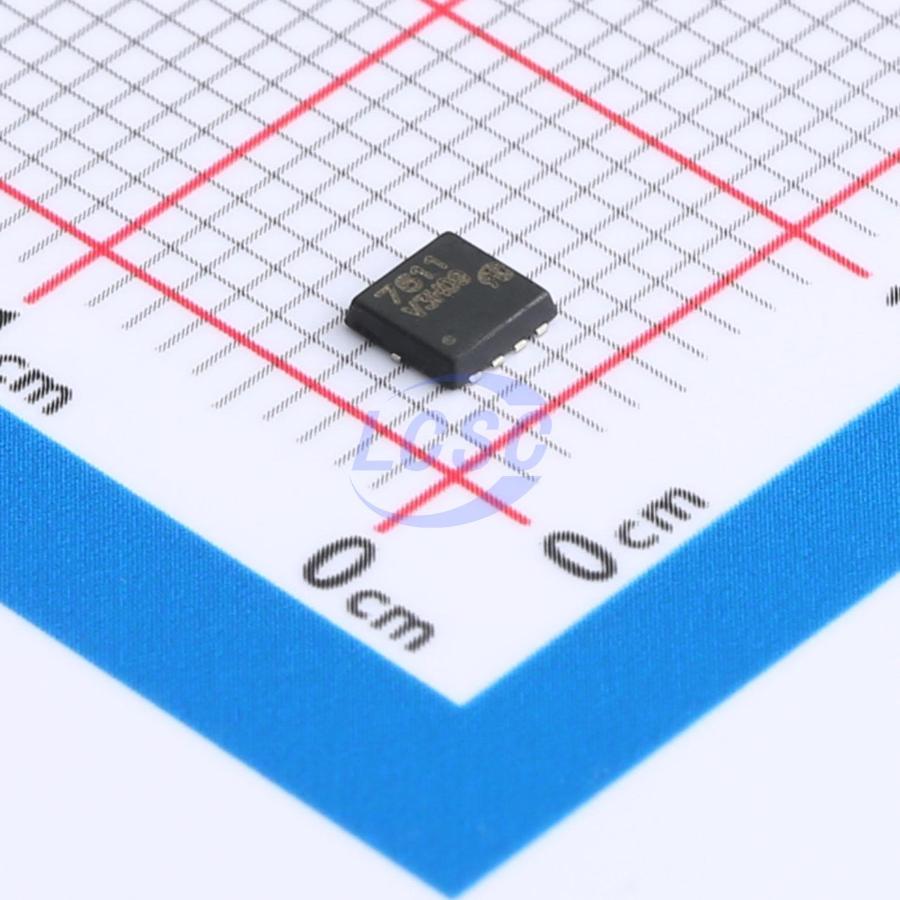

VBsemi Elec

SI7611DN-VB

P-Channel 40V Surface Mount DFN-8(3x3)

DFN-8(3x3)ROHS CompliantActive

MOSFET P-CH 40V DFN-8(3x3)

Manufacturer: VBsemi Elec
Manufacturer part #: SI7611DN-VB
Store part #: C7568832
Package / case: DFN-8(3x3)
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4 in stock

#C7568832

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹124.73	₹124.73
10+	₹102.57	₹1,025.70
30+	₹91.49	₹2,744.70
100+	₹80.41	₹8,041.00
500+	₹63.03	₹31,515.00
1,000+	₹59.55	₹59,550.00

Quantity (min 1)

1 × ₹124.73

₹124.73

excl. GST

₹147.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

SI7611DN-VB

₹124.73 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 40V
Output Capacitance(Coss): 615pF
Current - Continuous Drain(Id): 45A
Ciss-Input Capacitance: 5.125nF
Pd - Power Dissipation: 48W
Reverse Transfer Capacitance (Crss): 554pF
RDS(on): 12mΩ@10V
Number: 1 P-Channel
Gate Charge(Qg): 90nC@10V
Gate Threshold Voltage (Vgs(th)): 2.5V
Type: P-Channel

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.218 g

Overview

Applications

Battery, load, and adapter switching
Notebook computers
Notebook computer battery packs

Key features

Trench power MOSFET
Low on-resistance, low voltage drop
100% Rg and UIS tested
