MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
VBsemi ElecDatasheet (PDF)

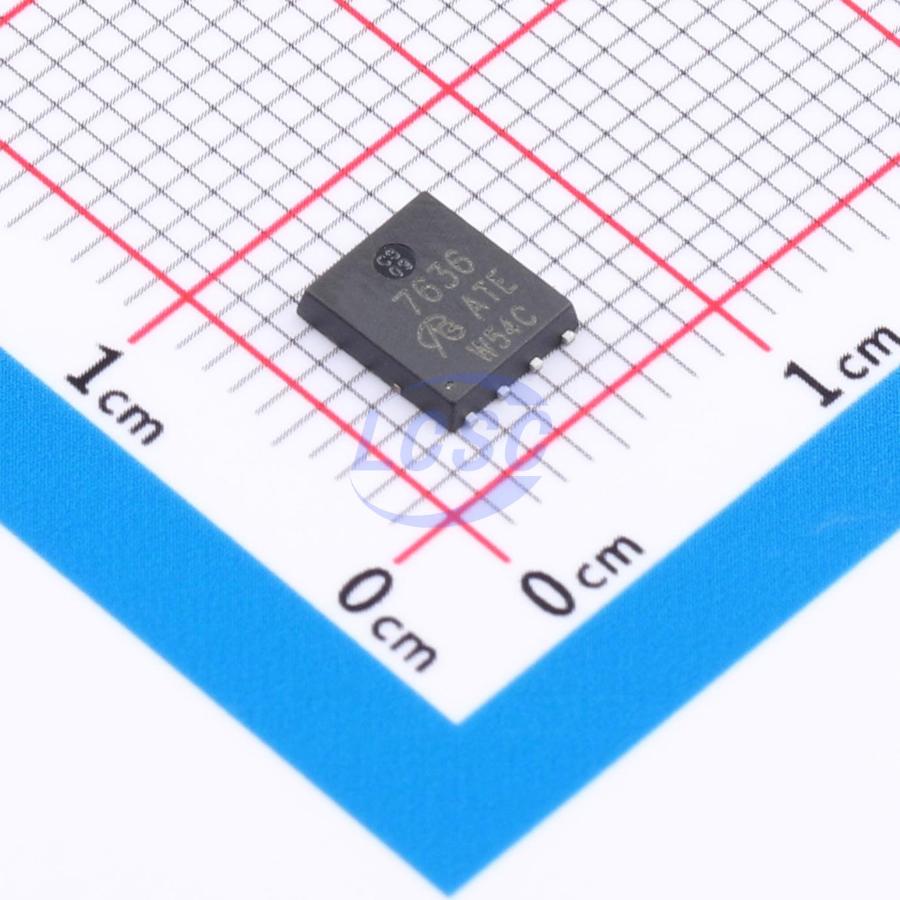

SI7636DP-T1-E3-VB
155W 30V 50A 7mΩ@10V 1 N-channel N-Channel DFN-8(5x6) Single FETs, MOSFETs
DFN-8(5x6)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SI7636DP-T1-E3-VB
- Store part #
- C52989167
- Package / case
- DFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C52989167
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.75 | ₹71.75 |
| 10+ | ₹70.66 | ₹706.60 |
| 30+ | ₹70.01 | ₹2,100.30 |
| 100+ | ₹69.15 | ₹6,915.00 |
1 × ₹71.75
₹71.75
excl. GST
₹84.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SI7636DP-T1-E3-VB
₹71.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 425pF
- Ciss-Input Capacitance
- 1.18nF
- Pd - Power Dissipation
- 155W
- Operating Temperature
- -55℃~+175℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 170pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 500mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.64 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7636DP-T1-GE3-VB#C52989168VBsemi Elec · DFN-8(5x6) | VBsemi Elec | DFN-8(5x6) | 5 | ₹96.22 · 5 in stock | View |
 | BSC030N03MS G-VB#C7568867VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 60 | ₹86.92 · 60 in stock | View |
 | FDMS8670S-VB#C2680912VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 9 | ₹95.79 · 9 in stock | View |
 | SI7386DP-T1-GE3-VB#C7569057VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹88.02 · 20 in stock | View |
 | BSC080N03LS G-VB#C7568869VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹100.57 · 10 in stock | View |
