VISHAYDatasheet (PDF)

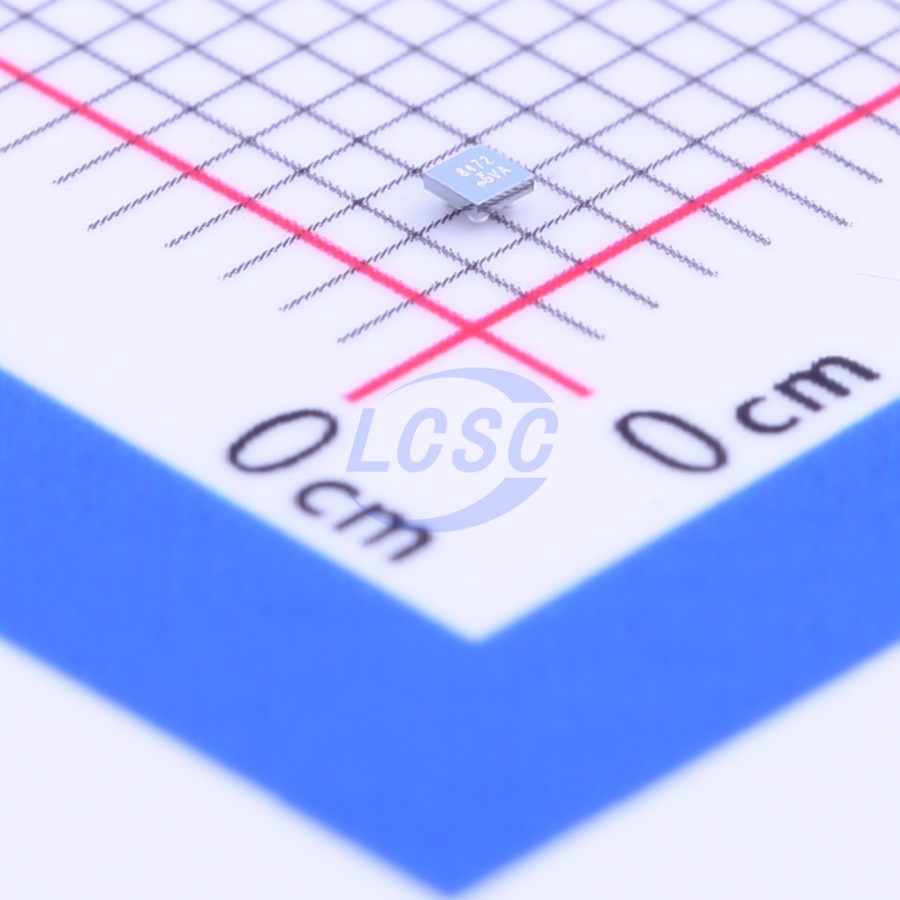

SI8472DB-T2-E1
N-Channel 20V 4.5A 1.8W Surface Mount UFBGA-4
UFBGA-4ROHS3 CompliantActive
MOSFET N-CH 20V 4.5A UFBGA-4
- Manufacturer
- VISHAY
- Manufacturer part #
- SI8472DB-T2-E1
- Store part #
- C143657
- Package / case
- UFBGA-4
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C143657
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.55 | ₹144.55 |
| 10+ | ₹141.90 | ₹1,419.00 |
| 30+ | ₹140.28 | ₹4,208.40 |
| 100+ | ₹138.45 | ₹13,845.00 |
1 × ₹144.55
₹144.55
excl. GST
₹170.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SI8472DB-T2-E1
₹144.55 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 105pF
- Ciss-Input Capacitance
- 630pF
- Pd - Power Dissipation
- 1.8W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 4.5A
- Reverse Transfer Capacitance (Crss)
- 42pF
- RDS(on)
- 70mΩ@1.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@8V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 900mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.133 g
Overview
Applications
- Baseband switch
- DC/DC conversion - Boost converters
- Smart phones, portable media players
Key features
- TrenchFET power MOSFET
- Ultra small 1 mm x 1 mm maximum outline
- Ultra-thin 0.548 mm maximum height
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EFC4615R-TR#C605382onsemi · XFBGA-4 | onsemi | XFBGA-4 | 1,000 | ₹25.90 · 1,000 in stock | View |
