VISHAYDatasheet (PDF)

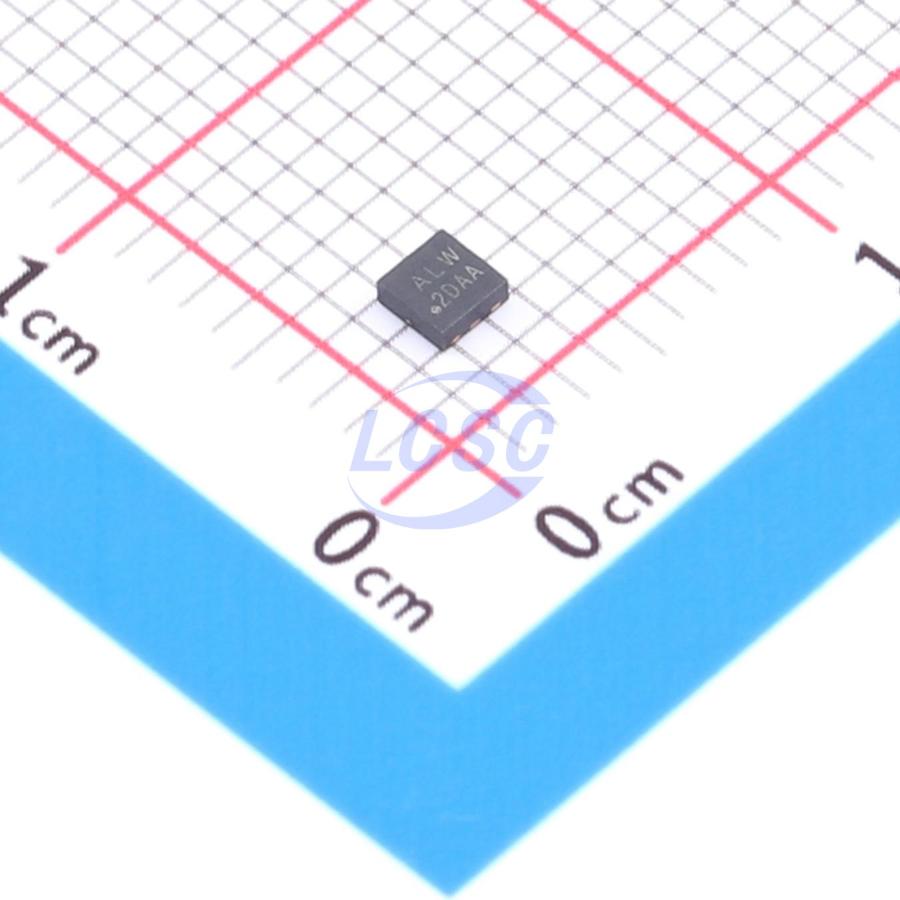

SIA432DJ-T4-GE3
N-Channel 30V 10.1A 19.2W Surface Mount PowerPAK-1212-8
PowerPAK-1212-8ROHS CompliantActive
MOSFET N-CH 30V 10.1A PowerPAK-1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIA432DJ-T4-GE3
- Store part #
- C18197886
- Package / case
- PowerPAK-1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,805 in stock
#C18197886
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.81 | ₹39.81 |
| 10+ | ₹34.94 | ₹349.40 |
| 30+ | ₹32.61 | ₹978.30 |
| 100+ | ₹30.07 | ₹3,007.00 |
| 500+ | ₹28.80 | ₹14,400.00 |
| 1,000+ | ₹28.17 | ₹28,170.00 |
1 × ₹39.81
₹39.81
excl. GST
₹46.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA432DJ-T4-GE3
₹39.81 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 115pF
- Current - Continuous Drain(Id)
- 10.1A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 19.2W
- Reverse Transfer Capacitance (Crss)
- 54pF
- RDS(on)
- 24mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 5.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
Applications
- Load Switch
Key features
- TrenchFET power MOSFET
- Thermally enhanced PowerPAK SC-70 package - Small footprint area
- 100 % UIS tested
