VISHAYDatasheet (PDF)

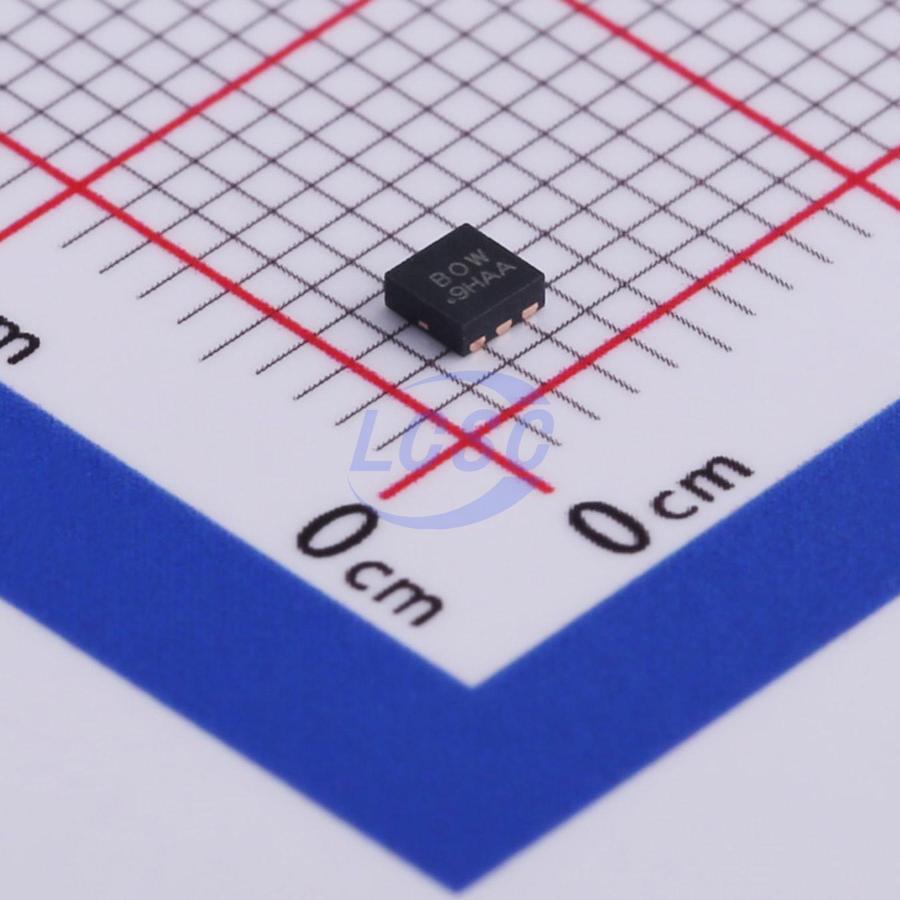

SIA441DJ-T1-GE3
40V 12A 12W Surface Mount PowerPAK-SC-70-6-Single
PowerPAK-SC-70-6-SingleROHS3 CompliantActive
MOSFET 40V 12A PowerPAK-SC-70-6-Single
- Manufacturer
- VISHAY
- Manufacturer part #
- SIA441DJ-T1-GE3
- Store part #
- C511084
- Package / case
- PowerPAK-SC-70-6-Single
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
236 in stock
#C511084
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹152.62 | ₹152.62 |
| 10+ | ₹125.92 | ₹1,259.20 |
| 30+ | ₹112.46 | ₹3,373.80 |
| 100+ | ₹99.21 | ₹9,921.00 |
| 500+ | ₹91.41 | ₹45,705.00 |
| 1,000+ | ₹87.28 | ₹87,280.00 |
1 × ₹152.62
₹152.62
excl. GST
₹180.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIA441DJ-T1-GE3
₹152.62 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 115pF
- Ciss-Input Capacitance
- 890pF
- Pd - Power Dissipation
- 12W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 47mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.021 g
Overview
Applications
- Portable and Consumer Devices
- Load Switch
- DC/DC Converter
- Motor Drive
- High-Side Switch in Half- and Full-Bridge Converters
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET
- Thermally Enhanced PowerPAK SC-70 Package
- Small Footprint Area
- Low On-Resistance
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE
