VBsemi ElecDatasheet (PDF)

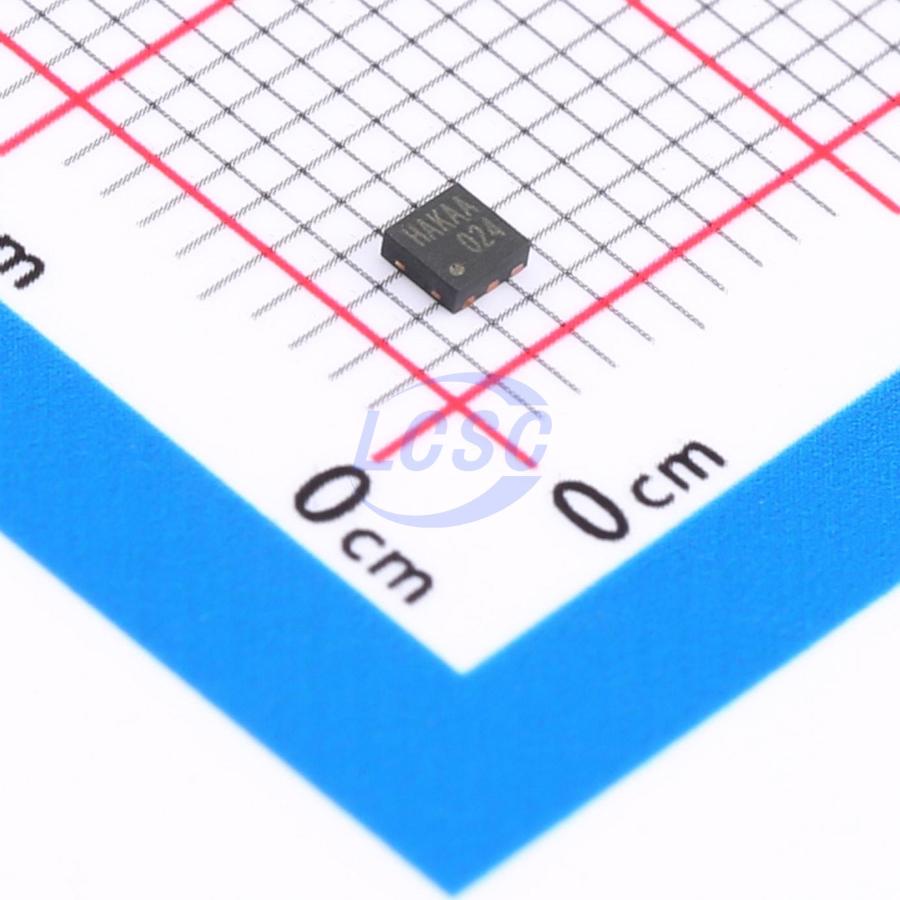

SiA910EDJ-T1-GE3-VB
N-Channel Array 30V 5.8A Surface Mount DFN-6(2x2)
DFN-6(2x2)ROHS CompliantActive
MOSFET N-CH ARR 30V 5.8A DFN-6(2x2)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SiA910EDJ-T1-GE3-VB
- Store part #
- C7568916
- Package / case
- DFN-6(2x2)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568916
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹108.38 | ₹108.38 |
| 10+ | ₹88.19 | ₹881.90 |
| 30+ | ₹77.99 | ₹2,339.70 |
| 100+ | ₹68.02 | ₹6,802.00 |
| 500+ | ₹61.85 | ₹30,925.00 |
| 1,000+ | ₹58.87 | ₹58,870.00 |
1 × ₹108.38
₹108.38
excl. GST
₹127.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SiA910EDJ-T1-GE3-VB
₹108.38 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 5.8A
- Ciss-Input Capacitance
- 886pF
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@10V;26mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.016 g
Overview
Applications
- Portable devices such as smartphones, tablets, and mobile computers
- Load switches
- DC/DC converters
- Power management
Key features
- Compliant with IEC 61249-2-21 halogen-free requirements
- Trench power MOSFET
- 100% tested for single-pulse avalanche energy (UIS)
- 100% tested for gate resistance (Rg)
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDMA3027PZ-F130-VB#C52109958VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹118.65 · 10 in stock | View |
| SIA922EDJ-T1-GE3-VB#C52110105VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹118.65 · 10 in stock | View | |
| PMDPB56XNEAX-VB#C52148765VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹118.43 · 10 in stock | View | |
 | PMDPB95XNE2X-VB#C52148766VBsemi Elec · DFN-6(2x2) | VBsemi Elec | DFN-6(2x2) | 10 | ₹118.65 · 10 in stock | View |
| PMDPB70EN,115-VB#C52191112VBsemi Elec · DFN-6(2X2)-B | VBsemi Elec | DFN-6(2X2)-B | 5 | ₹94.70 · 5 in stock | View | |
