VISHAYDatasheet (PDF)

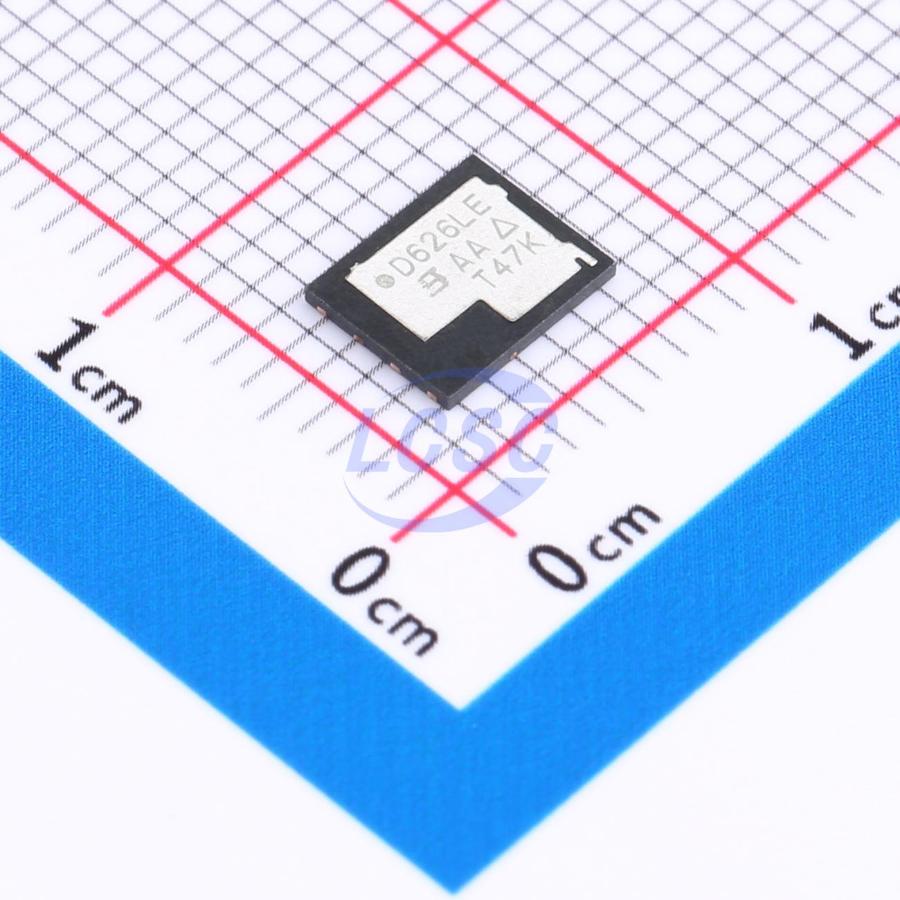

SIDR626LEP-T1-RE3
N-Channel 60V 218A 125W Surface Mount PowerPAK-SO-8DC
PowerPAK-SO-8DCROHS CompliantActive
MOSFET N-CH 60V 218A PowerPAK-SO-8DC
- Manufacturer
- VISHAY
- Manufacturer part #
- SIDR626LEP-T1-RE3
- Store part #
- C3289538
- Package / case
- PowerPAK-SO-8DC
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,148 in stock
#C3289538
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹328.65 | ₹328.65 |
| 10+ | ₹278.04 | ₹2,780.40 |
| 30+ | ₹246.54 | ₹7,396.20 |
| 100+ | ₹213.96 | ₹21,396.00 |
| 500+ | ₹199.40 | ₹99,700.00 |
| 1,000+ | ₹193.11 | ₹1,93,110.00 |
1 × ₹328.65
₹328.65
excl. GST
₹387.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIDR626LEP-T1-RE3
₹328.65 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.34nF
- Current - Continuous Drain(Id)
- 218A
- Ciss-Input Capacitance
- 5.9nF
- Pd - Power Dissipation
- 125W
- Reverse Transfer Capacitance (Crss)
- 89pF
- RDS(on)
- 2.1mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 135nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converter
- Solar micro inverter
- Motor drive switch
- Battery and load switch
- Industrial
Key features
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure-of-merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- RoHS COMPLIANT
- 100 % Rg and UIS tested
- HALOGEN FREE
- Top side cooling feature provides additional venue for thermal transfer
