VISHAYDatasheet (PDF)

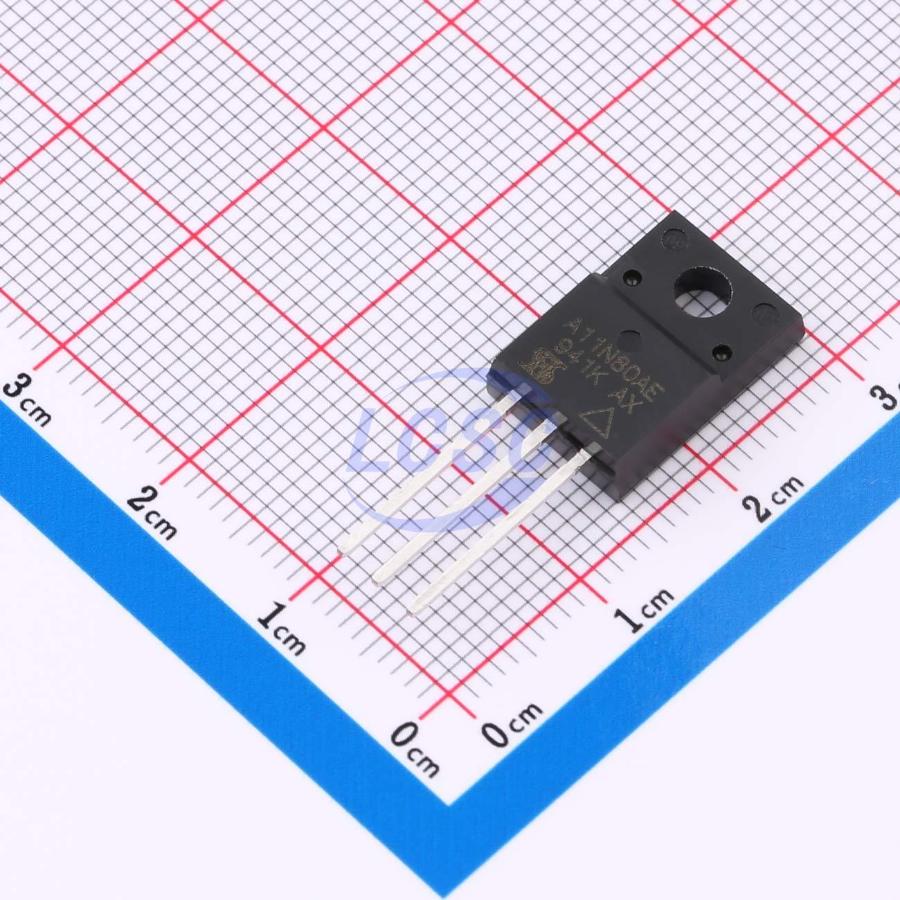

SIHA11N80AE-GE3
800V 5A 31W 450mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
N-Channel, Current:5A, Voltage:800V
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHA11N80AE-GE3
- Store part #
- C3290252
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
38 in stock
#C3290252
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹208.61 | ₹208.61 |
| 10+ | ₹203.61 | ₹2,036.10 |
| 30+ | ₹200.36 | ₹6,010.80 |
| 100+ | ₹197.10 | ₹19,710.00 |
1 × ₹208.61
₹208.61
excl. GST
₹246.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SIHA11N80AE-GE3
₹208.61 for 1 + GST
Specifications
- Drain to Source Voltage
- 800V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 34pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 804pF
- Pd - Power Dissipation
- 31W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 450mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.275 g
Overview
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID)
- Fluorescent ballast lighting
- Industrial
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Renewable energy
Key features
- Low figure of merit (FOM) Ron × Qg
- Low effective capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
- Integrated Zener diode ESD protection
