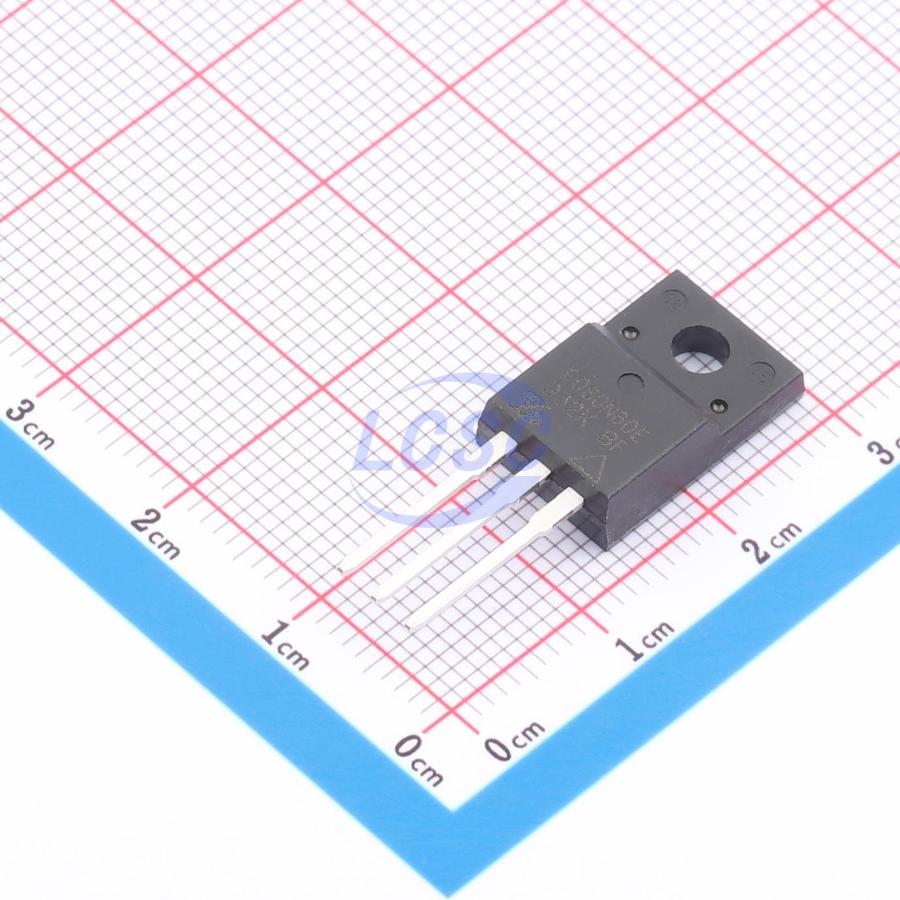

SIHF080N60E-GE3
600V 14A 35W 80mΩ@10V 1 N-channel N-Channel TO-220 Single FETs, MOSFETs RoHS
TO-220ROHS3 CompliantActive
N-Channel MOSFET, Current:9A, Voltage:600V
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHF080N60E-GE3
- Store part #
- C3280450
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3280450
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹512.77 | ₹512.77 |
| 10+ | ₹501.06 | ₹5,010.60 |
| 30+ | ₹493.25 | ₹14,797.50 |
| 100+ | ₹485.45 | ₹48,545.00 |
1 × ₹512.77
₹512.77
excl. GST
₹605.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SIHF080N60E-GE3
₹512.77 for 1 + GST
Specifications
- Drain to Source Voltage
- 600V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 105pF
- Current - Continuous Drain(Id)
- 14A
- Ciss-Input Capacitance
- 2.557nF
- Pd - Power Dissipation
- 35W
- Reverse Transfer Capacitance (Crss)
- 6pF
- RDS(on)
- 80mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 63nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.36 g
Overview
These N-channel enhancement-mode power MOSFETs are manufactured using Fairchild Semiconductor's proprietary planar DMOS technology. This advanced technology is specifically designed to minimize on-resistance, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes. These devices are ideal for high-efficiency switching DC/DC converters, switching power supplies, DC-AC converters for UPS, and motor control applications.
Applications
- Server and telecom power supplies
- Switch Mode Power Supplies (SMPS)
- Power Factor Correction (PFC)
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent lamp ballast lighting
- Industrial
- Welding
- Induction heating
- Motor drives
- Battery chargers
- Solar (photovoltaic inverters)
Key features
- 4th Generation E-Series Technology
- Low figure-of-merit (FOM) Ron × Qg
- Low effective capacitance Co(er)
- Reduced switching and conduction losses
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIHF074N65E-GE3#C28546437VISHAY · TO-220 | VISHAY | TO-220 | 10 | ₹1,411.72 · 10 in stock | View |
 | WSR20N60#C20608582Winsok Semicon · TO-220 | Winsok Semicon | TO-220 | On request | ₹273.36 · 0 in stock | View |
 | NCE65NF099#C48985817NCE · TO-220 | NCE | TO-220 | 827 | ₹404.15 · 827 in stock | View |
 | STP45N60DM2AG#C2965436ST · TO-220-3 | ST | TO-220-3 | 70 | ₹1,306.52 · 70 in stock | View |
 | FCP099N65S3#C516097onsemi · TO-220 | onsemi | TO-220 | 785 | ₹323.71 · 785 in stock | View |
