VBsemi ElecDatasheet (PDF)

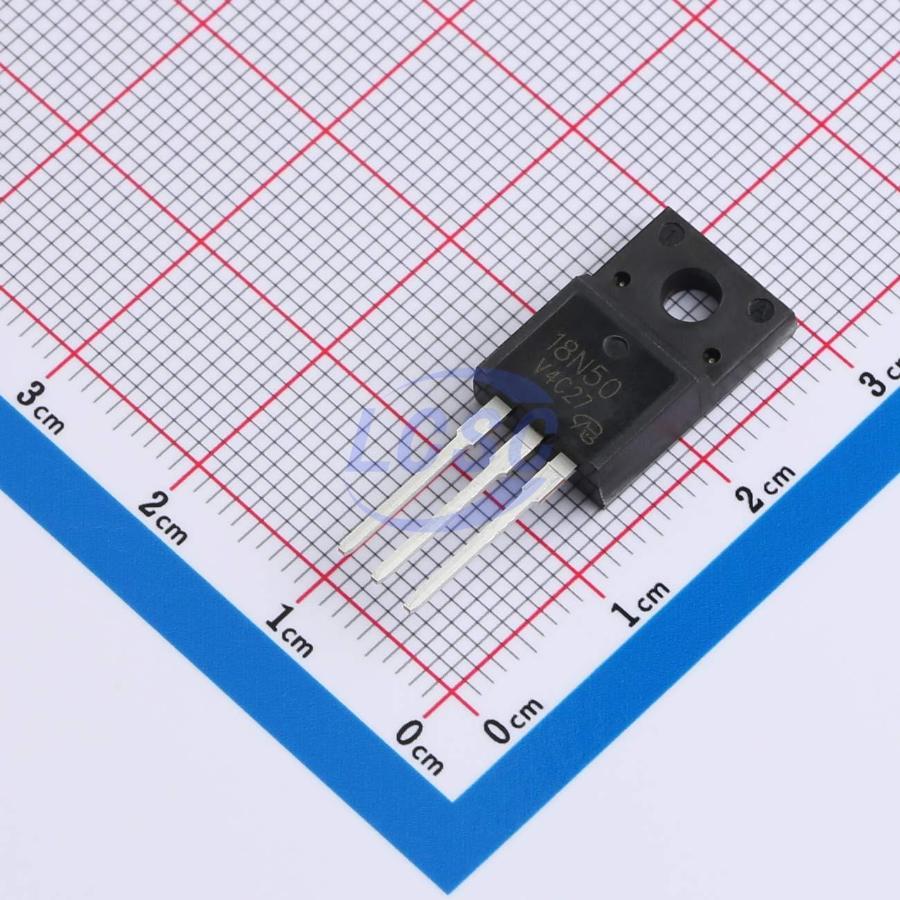

SIHF18N50D-VB
N-Channel 500V 18A 180W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 500V 18A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIHF18N50D-VB
- Store part #
- C22356986
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22356986
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.73 | ₹261.73 |
| 10+ | ₹221.40 | ₹2,214.00 |
| 50+ | ₹196.40 | ₹9,820.00 |
| 100+ | ₹170.57 | ₹17,057.00 |
| 500+ | ₹158.80 | ₹79,400.00 |
| 1,000+ | ₹153.76 | ₹1,53,760.00 |
1 × ₹261.73
₹261.73
excl. GST
₹308.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SIHF18N50D-VB
₹261.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 500V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.92nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 210mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
The 40P04 is a high cell density trench P-channel MOSFET that delivers excellent on-resistance (RDSON) and gate charge for most synchronous buck converter applications. The 40P04 is RoHS compliant and meets green product requirements, is 100% guaranteed for avalanche capability (EAS), and has passed full-function reliability qualification.
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ × Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Ω₉)
- Avalanche energy rated (UIS)
