VBsemi ElecDatasheet (PDF)

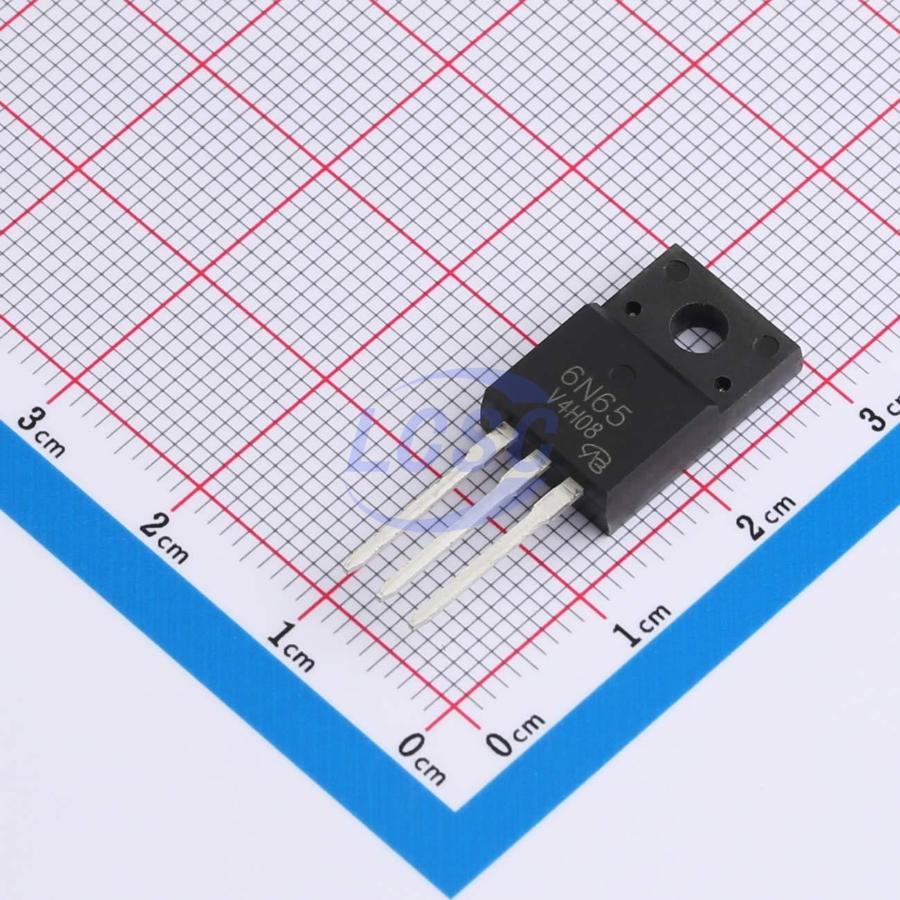

SiHF6N65E-VB
N-Channel 650V 9A 280W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 9A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SiHF6N65E-VB
- Store part #
- C22357220
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357220
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹154.82 | ₹154.82 |
| 10+ | ₹127.93 | ₹1,279.30 |
| 50+ | ₹113.22 | ₹5,661.00 |
| 100+ | ₹96.63 | ₹9,663.00 |
| 500+ | ₹89.28 | ₹44,640.00 |
| 1,000+ | ₹85.92 | ₹85,920.00 |
1 × ₹154.82
₹154.82
excl. GST
₹182.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SiHF6N65E-VB
₹154.82 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 9A
- Ciss-Input Capacitance
- 1.2nF
- Pd - Power Dissipation
- 280W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 550mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 85nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.2 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) Rₒₙ×Q₉
- Low input capacitance (Cᵢₛₛ)
- Reduced switching and conduction losses
- Ultra low gate charge (Q₉)
- Avalanche energy rated (UIS)
