VISHAYDatasheet (PDF)

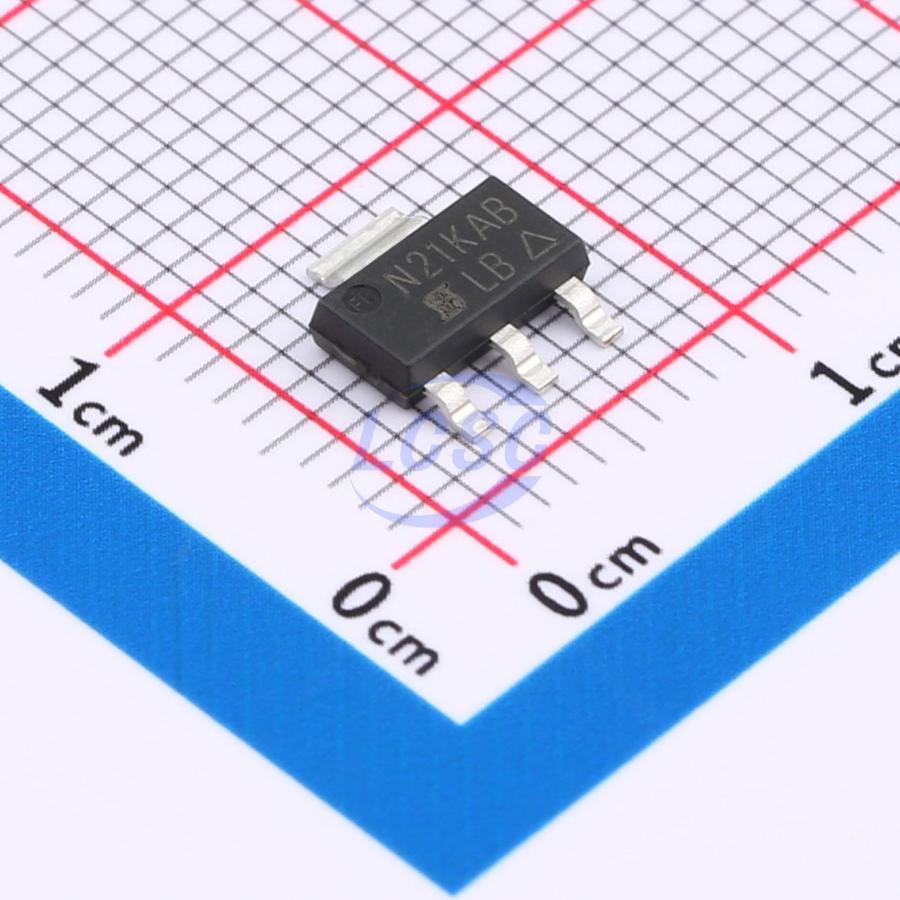

SIHLL110TR-GE3
N-Channel 100V 0.93A 3.1W Surface Mount SOT-223
SOT-223ROHS3 CompliantActive
MOSFET N-CH 100V 0.93A SOT-223
- Manufacturer
- VISHAY
- Manufacturer part #
- SIHLL110TR-GE3
- Store part #
- C727482
- Package / case
- SOT-223
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,708 in stock
#C727482
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.54 | ₹72.54 |
| 10+ | ₹57.99 | ₹579.90 |
| 30+ | ₹51.69 | ₹1,550.70 |
| 100+ | ₹43.87 | ₹4,387.00 |
| 500+ | ₹40.39 | ₹20,195.00 |
| 1,000+ | ₹38.22 | ₹38,220.00 |
1 × ₹72.54
₹72.54
excl. GST
₹85.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SIHLL110TR-GE3
₹72.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 80pF
- Ciss-Input Capacitance
- 250pF
- Pd - Power Dissipation
- 3.1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 930mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 540mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.1nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
Third generation power MOSFETs provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The SOT-223 package is designed for surface-mounting using vapor phase, infrared, or wave soldering techniques. Its unique package design allows for easy automatic pick-and-place as with other SOT or SOIC packages but has the added advantage of improved thermal performance due to an enlarged tab for heatsinking. Power dissipation of greater than 1.25 W is possible in a typical surface mount application.
Key features
- Surface mount
- Available in tape and reel
- Dynamic dV/dt rating
- Repetitive avalanche rated
- Logic-level gate drive
- RDS(on) specified at VGS = 4 V and 5 V
- Fast switching
