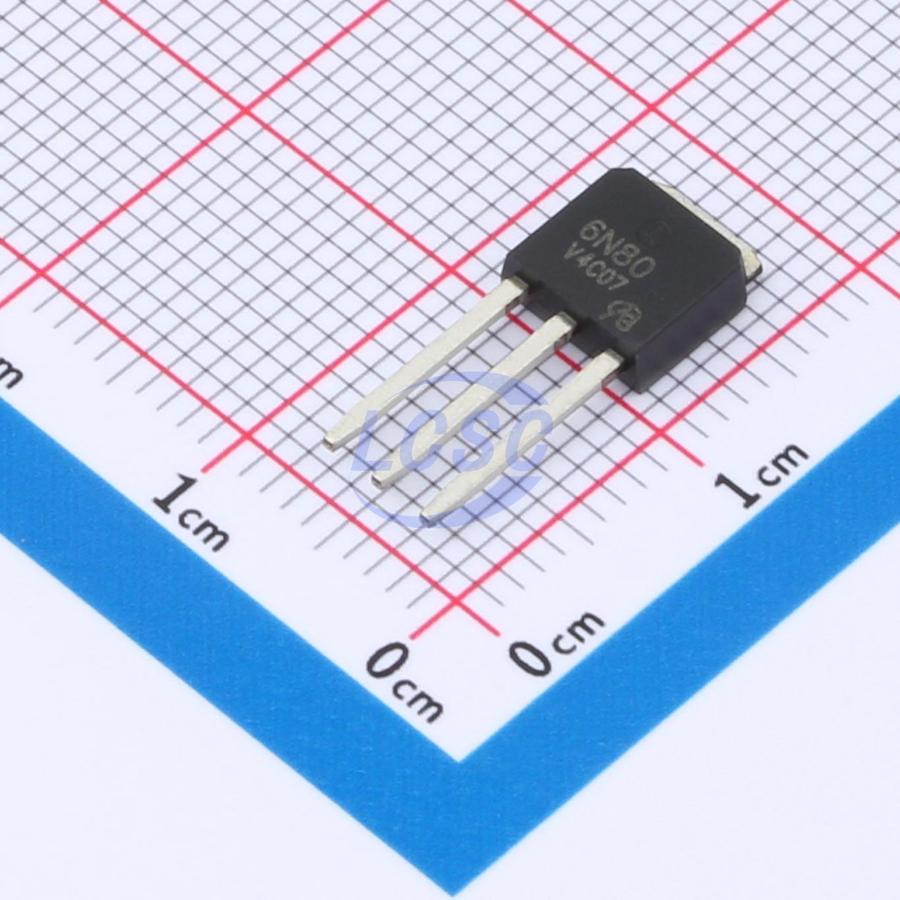

SiHU6N80E-VB
N-Channel 800V 6A 210W Through Hole TO-251
TO-251RoHSActive
MOSFET N-CH 800V 6A TO-251
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SiHU6N80E-VB
- Store part #
- C22357335
- Package / case
- TO-251
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357335
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹194.52 | ₹194.52 |
| 10+ | ₹160.90 | ₹1,609.00 |
| 30+ | ₹142.42 | ₹4,272.60 |
| 80+ | ₹121.41 | ₹9,712.80 |
| 480+ | ₹112.18 | ₹53,846.40 |
| 960+ | ₹107.97 | ₹1,03,651.20 |
1 × ₹194.52
₹194.52
excl. GST
₹229.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 80 per tube
SiHU6N80E-VB
₹194.52 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 800V
- Output Capacitance(Coss)
- 81pF
- Current - Continuous Drain(Id)
- 6A
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 210W
- Reverse Transfer Capacitance (Crss)
- 9pF
- RDS(on)
- 850mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 122nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 80 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.4 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial - Welding - Induction heating - Motor drives - Battery chargers - Renewable energy - Solar (PV inverters)
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
