VISHAYDatasheet (PDF)

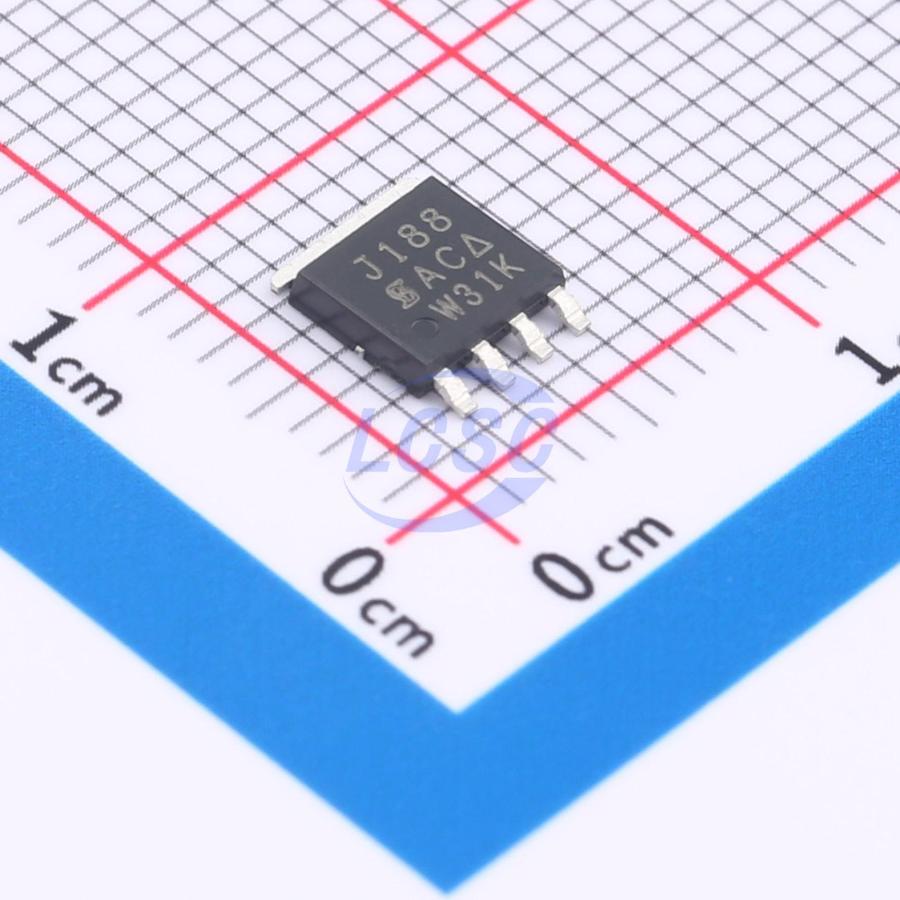

SIJ188DP-T1-GE3
N-Channel 60V 92.4A 65.7W PowerPAKSO-8L
PowerPAKSO-8LROHS3 CompliantActive
MOSFET N-CH 60V 92.4A PowerPAKSO-8L
- Manufacturer
- VISHAY
- Manufacturer part #
- SIJ188DP-T1-GE3
- Store part #
- C3009863
- Package / case
- PowerPAKSO-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C3009863
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹214.30 | ₹214.30 |
| 10+ | ₹179.86 | ₹1,798.60 |
| 30+ | ₹158.06 | ₹4,741.80 |
| 100+ | ₹136.04 | ₹13,604.00 |
| 500+ | ₹126.02 | ₹63,010.00 |
| 1,000+ | ₹121.65 | ₹1,21,650.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 92.4A
- Ciss-Input Capacitance
- 1.92nF
- Pd - Power Dissipation
- 65.7W
- RDS(on)
- 4.9mΩ@7.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 44nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The third-generation power MOSFETs offer designers an optimal combination of fast switching, enhanced device design, low on-resistance, and high cost-effectiveness. The TO-220 FULLPAK package eliminates the need for additional isolation hardware in commercial-industrial applications. The molding compound used provides high isolation capability and low thermal resistance between the die and external heatsink. This isolation is equivalent to using a 100-micron mica barrier in a standard TO-220 product. The FULLPAK package can be mounted to a heatsink using a single clip or a single screw.
Applications
- Synchronous rectification
- Primary-side switching
- DC/DC converters
- Motor drive switching
Key features
- TrenchFET 4th generation power MOSFET
- Ultra-low R DS - Qg figure of merit (FOM)
- Optimized for lowest R DS - Qoss FOM
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SQJ182EP-T1_GE3#C3289460VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | 93 | ₹178.62 · 93 in stock | View | |
| SQJ180EP-T1_GE3#C3279534VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | 42 | ₹320.38 · 42 in stock | View | |
 | SQJ160EP-T1_GE3#C3289510VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | On request | ₹360.89 · 0 in stock | View |
 | SQJA16EP-T1_GE3#C3289493VISHAY · PowerPAKSO-8L | VISHAY | PowerPAKSO-8L | On request | ₹126.70 · 0 in stock | View |
