VISHAYDatasheet (PDF)

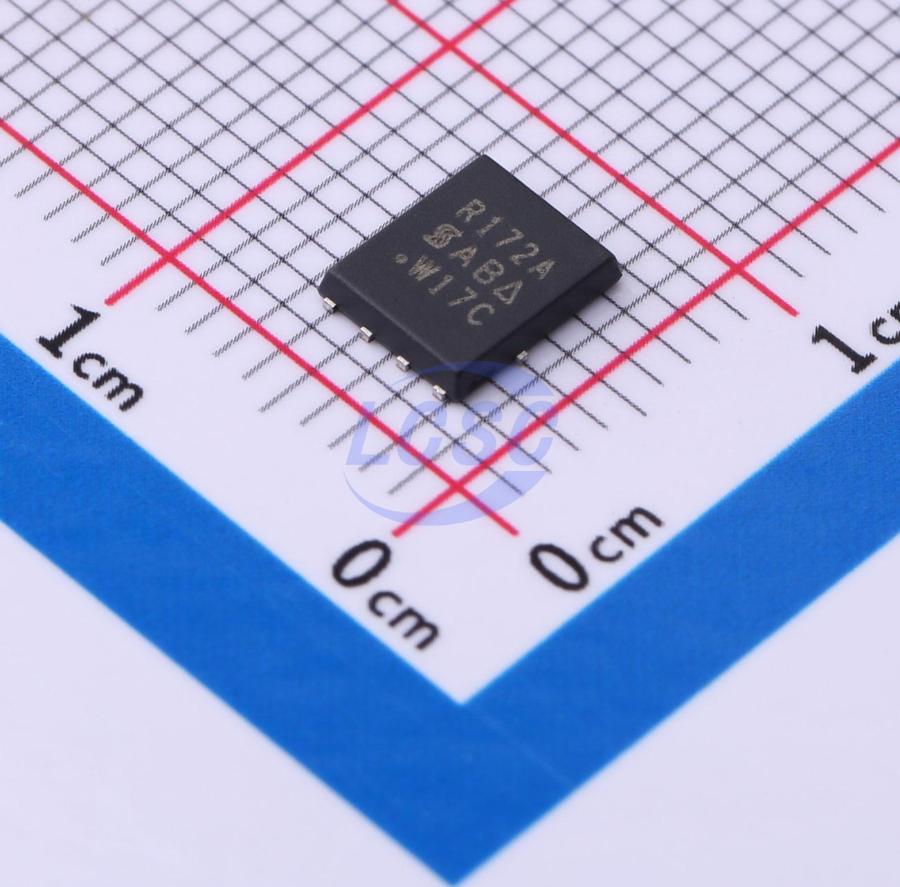

SIR172ADP-T1-GE3
N-Channel 30V 16.1A 3.9W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 30V 16.1A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR172ADP-T1-GE3
- Store part #
- C727332
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,057 in stock
#C727332
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.23 | ₹44.23 |
| 10+ | ₹38.43 | ₹384.30 |
| 30+ | ₹35.85 | ₹1,075.50 |
| 100+ | ₹32.64 | ₹3,264.00 |
| 500+ | ₹31.36 | ₹15,680.00 |
| 1,000+ | ₹30.50 | ₹30,500.00 |
1 × ₹44.23
₹44.23
excl. GST
₹52.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR172ADP-T1-GE3
₹44.23 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 202pF
- Ciss-Input Capacitance
- 1.515nF
- Pd - Power Dissipation
- 3.9W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 16.1A
- Reverse Transfer Capacitance (Crss)
- 142pF
- RDS(on)
- 8.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
Applications
- Notebook CPU Core - High-Side Switch
Key features
- TrenchFET Power MOSFET
- Low Thermal Resistance PowerPAK Package with Low 1.07 mm Profile
- Optimized for High-Side Synchronous Rectifier Operation
- 100 % Rg and UIS Tested
- RoHS COMPLIANT
- HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA3004#C2828500HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,930 | ₹24.44 · 2,930 in stock | View |
 | SM95N03AD1RL#C350655SPS · DFN-8(4.9x5.7) | SPS | DFN-8(4.9x5.7) | 40 | ₹46.69 · 40 in stock | View |
 | SM6536D1RL#C496526SPS · DFN-8-EP(6.1x5.2) | SPS | DFN-8-EP(6.1x5.2) | 32 | ₹56.41 · 32 in stock | View |
| AP65N04NF#C3024540A Power microelectronics · PDFN-8L(5x6) | A Power microelectronics | PDFN-8L(5x6) | On request | Price on request | Quote | |
 | WSD3075DN56#C2758430Winsok Semicon · DFN5X6-8 | Winsok Semicon | DFN5X6-8 | 7,058 | ₹27.70 · 7,058 in stock | View |
