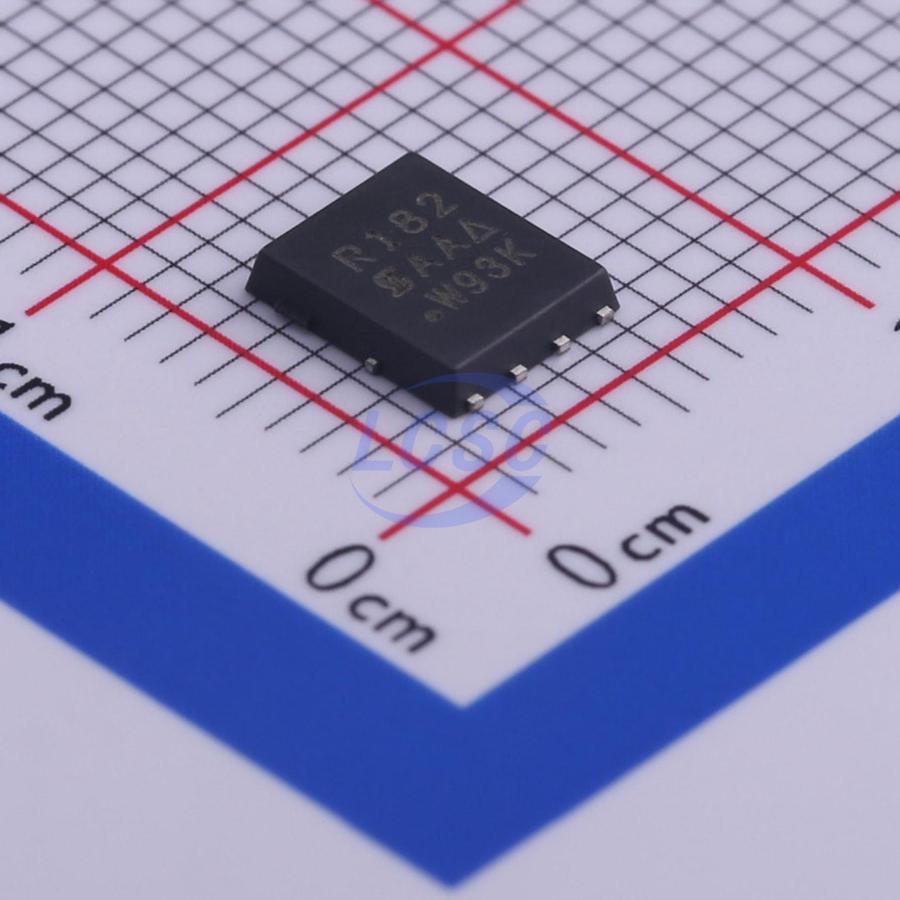

SIR182DP-T1-RE3
N-Channel 60V 117A 69.4W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 60V 117A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR182DP-T1-RE3
- Store part #
- C467943
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,108 in stock
#C467943
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹284.11 | ₹284.11 |
| 10+ | ₹246.34 | ₹2,463.40 |
| 30+ | ₹222.69 | ₹6,680.70 |
| 100+ | ₹198.60 | ₹19,860.00 |
| 500+ | ₹167.99 | ₹83,995.00 |
| 1,000+ | ₹163.22 | ₹1,63,220.00 |
1 × ₹284.11
₹284.11
excl. GST
₹335.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR182DP-T1-RE3
₹284.11 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 840pF
- Ciss-Input Capacitance
- 3.25nF
- Pd - Power Dissipation
- 69.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 117A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 2.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 33.8nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.132 g
Overview
Applications
- Synchronous rectification
- Primary side switch
- DC/DC converter
- Motor drive switch
Key features
- TrenchFET Gen IV power MOSFET
- Very low RDS - Qg figure-of-merit (FOM)
- Tuned for the lowest RDS - Qoss FOM
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP60N03GNK#C22466765Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 429 | ₹65.05 · 429 in stock | View |
 | SP60N03GHNK#C22466766Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 682 | ₹65.91 · 682 in stock | View |
 | STL140N6F7#C472545ST · PDFN-8(5x5.8) | ST | PDFN-8(5x5.8) | 4,976 | ₹110.50 · 4,976 in stock | View |
 | YJG2D7G06A#C22468360YANGJIE · PDFN-8L(5x6) | YANGJIE | PDFN-8L(5x6) | 1,921 | ₹59.43 · 1,921 in stock | View |
 | STL130N6F7-JSM#C55106952JSMSEMI · DFN-5060-8L | JSMSEMI | DFN-5060-8L | 990 | ₹82.30 · 990 in stock | View |
