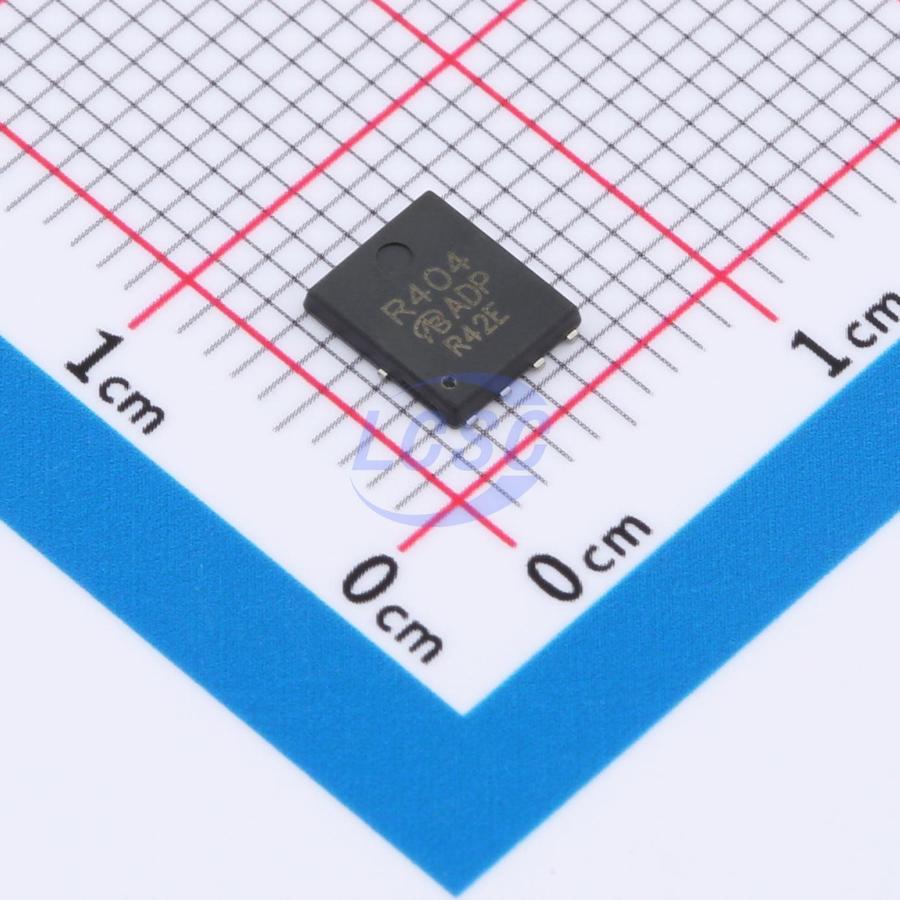

SIR404DP-VB
30V 160A 250W 2.5mΩ@4.5V 1 N-channel N-Channel DFN-8(5x6) Single FETs, MOSFETs
DFN-8(5x6)RoHSActive
MOSFET N-CH 30V 160A DFN-8(5x6)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SIR404DP-VB
- Store part #
- C20755589
- Package / case
- DFN-8(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C20755589
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.76 | ₹142.76 |
| 10+ | ₹117.79 | ₹1,177.90 |
| 30+ | ₹105.18 | ₹3,155.40 |
| 100+ | ₹92.80 | ₹9,280.00 |
| 500+ | ₹71.06 | ₹35,530.00 |
| 1,000+ | ₹67.16 | ₹67,160.00 |
1 × ₹142.76
₹142.76
excl. GST
₹168.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIR404DP-VB
₹142.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 160A
- Ciss-Input Capacitance
- 66pF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.265 g
Overview
Applications
- OR Gate Applications - Server
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7858BDP-VB#C20417698VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 50 | ₹142.63 · 50 in stock | View |
 | SIR424DP-T1-GE3-VB#C20626295VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 35 | ₹157.77 · 35 in stock | View |
 | CSD16414Q5-VB#C20755226VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹142.63 · 20 in stock | View |
 | CSD16413Q5A-VB#C20755651VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹142.63 · 20 in stock | View |
 | IRFH5302DTRPBF-VB#C29778845VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 20 | ₹136.96 · 20 in stock | View |
