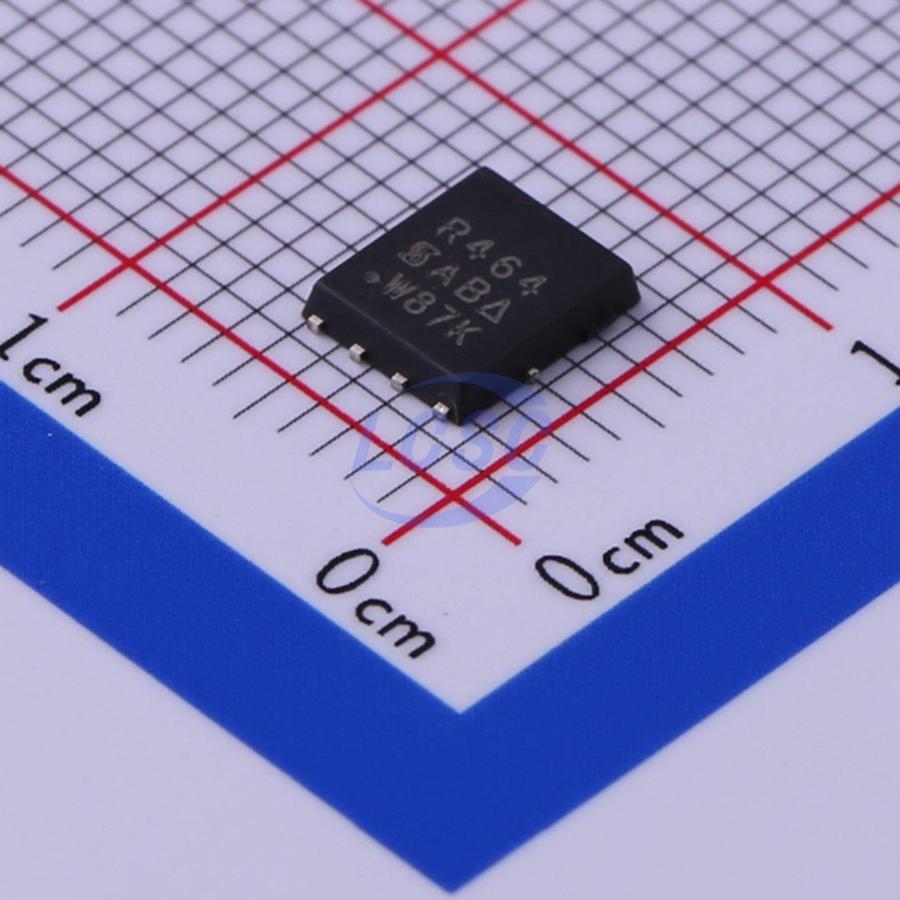

SIR464DP-T1-GE3
N-Channel 30V 30A 44.4W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 30V 30A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR464DP-T1-GE3
- Store part #
- C469518
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,846 in stock
#C469518
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.77 | ₹82.77 |
| 10+ | ₹67.34 | ₹673.40 |
| 30+ | ₹59.52 | ₹1,785.60 |
| 100+ | ₹51.91 | ₹5,191.00 |
| 500+ | ₹45.41 | ₹22,705.00 |
| 1,000+ | ₹43.01 | ₹43,010.00 |
1 × ₹82.77
₹82.77
excl. GST
₹97.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR464DP-T1-GE3
₹82.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 650pF
- Ciss-Input Capacitance
- 3.545nF
- Pd - Power Dissipation
- 44.4W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 240pF
- RDS(on)
- 3.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.23 g
Overview
Applications
- DC/DC Conversion - Low-Side Switch
- Notebook
- Server
Key features
- Halogen-free TrenchFET Power MOSFET 100 % Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA3016#C2903565HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,175 | ₹24.08 · 2,175 in stock | View |
 | APG032N04G#C5443668ALLPOWER · PDFN5x6-8 | ALLPOWER | PDFN5x6-8 | 5,035 | ₹77.17 · 5,035 in stock | View |
 | WSD30150ADN56#C5242056Winsok Semicon · DFN5X6-8 | Winsok Semicon | DFN5X6-8 | 4,607 | ₹71.71 · 4,607 in stock | View |
 | SIRA12DP-T1-GE3-MS#C51927976MSKSEMI · DFN-8L(5x6) | MSKSEMI | DFN-8L(5x6) | 480 | ₹49.74 · 480 in stock | View |
 | NVMFS5C460NLWFAFT1G#C556458onsemi · SO-8FL | onsemi | SO-8FL | 11 | ₹240.55 · 11 in stock | View |
