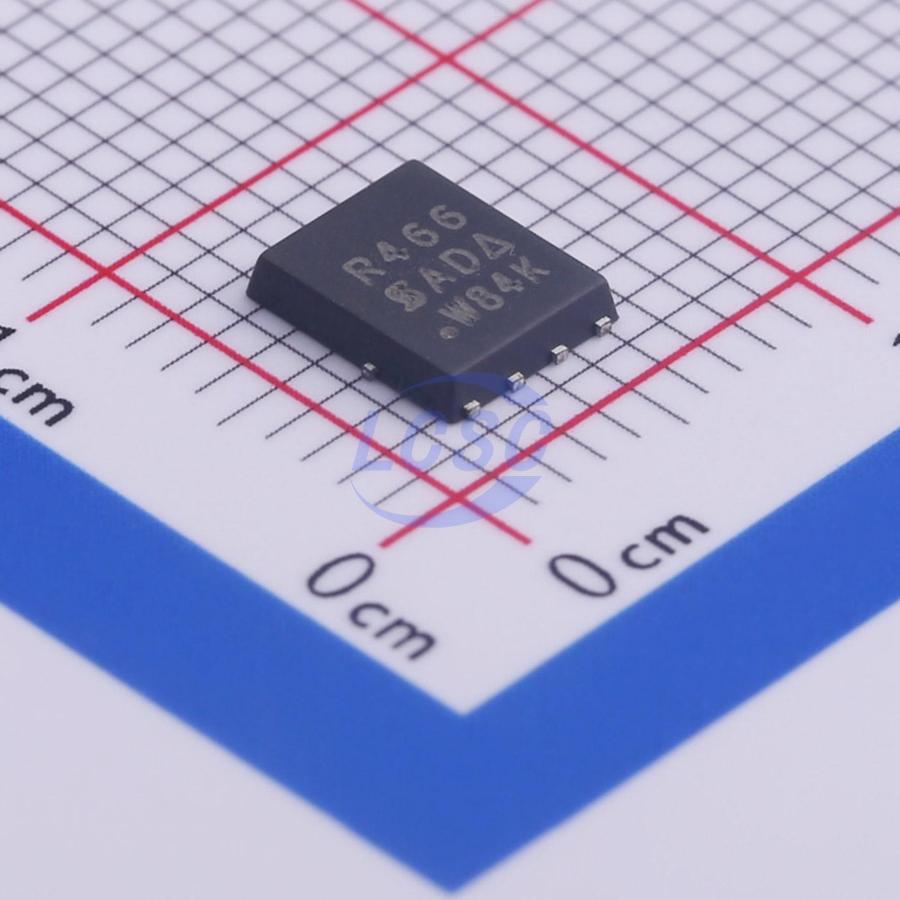

SIR466DP-T1-GE3
N-Channel 30V 40A 5W 54W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET N-CH 30V 40A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR466DP-T1-GE3
- Store part #
- C466991
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,311 in stock
#C466991
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹138.98 | ₹138.98 |
| 10+ | ₹113.62 | ₹1,136.20 |
| 30+ | ₹99.74 | ₹2,992.20 |
| 100+ | ₹84.13 | ₹8,413.00 |
| 500+ | ₹76.97 | ₹38,485.00 |
| 1,000+ | ₹73.94 | ₹73,940.00 |
1 × ₹138.98
₹138.98
excl. GST
₹164.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR466DP-T1-GE3
₹138.98 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 540pF
- Ciss-Input Capacitance
- 2.73nF
- Pd - Power Dissipation
- 5W;54W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 205pF
- RDS(on)
- 3.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 65nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.247 g
Overview
Applications
- DC/DC converter - Low slide switch
- Notebook PC
- Graphic cards
- Server
Key features
- TrenchFET power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SP30N03BNK#C41354860Siliup · PDFN-8L(5x6) | Siliup | PDFN-8L(5x6) | 1,935 | ₹22.64 · 1,935 in stock | View |
 | HSBA3094#C508826HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 5 | ₹59.18 · 5 in stock | View |
 | KCY3303S#C1509089KIA Semicon Tech · DFN-8(5x6) | KIA Semicon Tech | DFN-8(5x6) | 95 | ₹44.51 · 95 in stock | View |
 | ASDM30N120Q-R#C2972859ASDsemi · DFN5x6-8 | ASDsemi | DFN5x6-8 | 4,890 | ₹38.39 · 4,890 in stock | View |
 | AP85N04G#C2995334ALLPOWER · TDSON-8(5.2x5.9) | ALLPOWER | TDSON-8(5.2x5.9) | 835 | ₹37.41 · 835 in stock | View |
