VISHAYDatasheet (PDF)

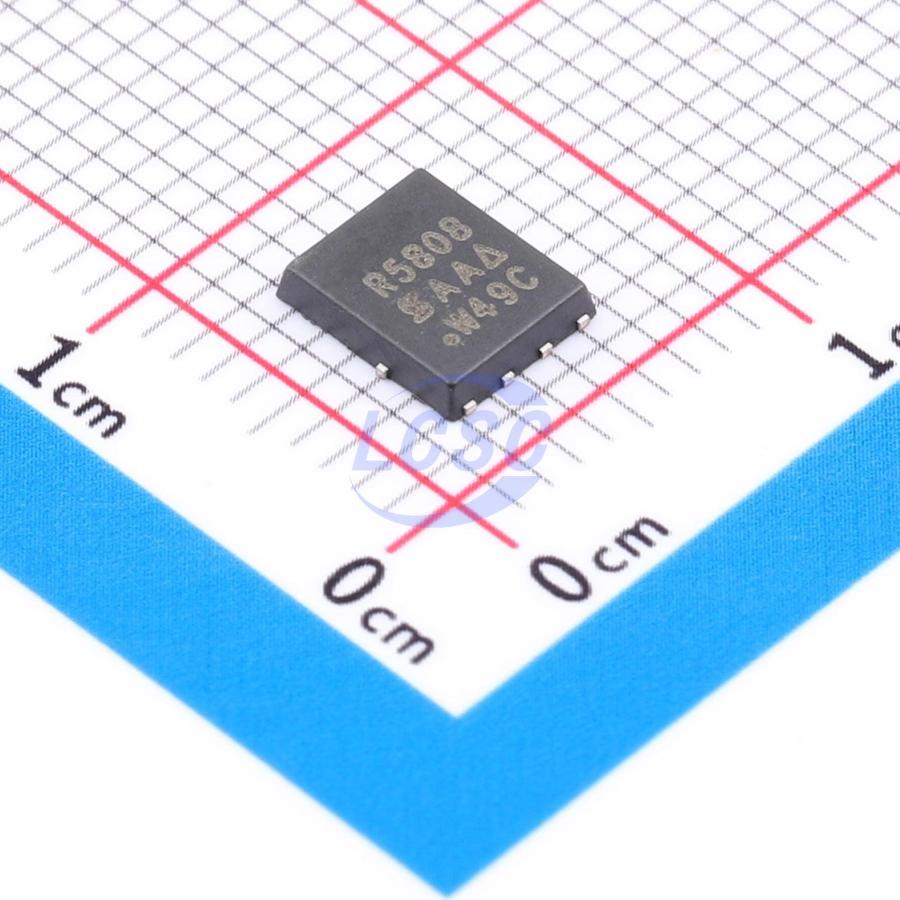

SIR5808DP-T1-RE3
5.2W 80V 66.8A 7.35mΩ@10V 1 N-channel N-Channel PowerPAKSO-8 Single FETs, MOSFETs RoHS
PowerPAKSO-8ROHS CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR5808DP-T1-RE3
- Store part #
- C20346139
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C20346139
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.48 | ₹225.48 |
| 10+ | ₹222.25 | ₹2,222.50 |
| 30+ | ₹220.32 | ₹6,609.60 |
| 100+ | ₹218.16 | ₹21,816.00 |
1 × ₹225.48
₹225.48
excl. GST
₹266.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR5808DP-T1-RE3
₹225.48 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 510pF
- Ciss-Input Capacitance
- 1.21nF
- Pd - Power Dissipation
- 5.2W
- Configuration
- Standalone
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 66.8A
- Reverse Transfer Capacitance (Crss)
- 8pF
- RDS(on)
- 7.35mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.315 g
Overview
Applications
- Synchronous rectification
- Primary-side switching
- DC/DC converters
- OR-ing and hot-swap switches
- Power supplies
- Motor drive control
- Battery management
Key features
- TrenchFET 5th generation power MOSFET
- Ultra-low RDS × Qg figure of merit (FOM)
- Optimized for lowest RDS × Qoss FOM
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NVMFS6H836NWFT3G#C3288277onsemi · DFN-5(5x6)(SO-8FL) | onsemi | DFN-5(5x6)(SO-8FL) | 5 | ₹389.04 · 5 in stock | View |
 | NVMFS6H836NT3G#C3288268onsemi · DFN-5(5x6)(SO-8FL) | onsemi | DFN-5(5x6)(SO-8FL) | 18 | ₹365.51 · 18 in stock | View |
 | FDMS86182#C606107onsemi · Power56-8 | onsemi | Power56-8 | 8 | ₹159.86 · 8 in stock | View |
 | CJAC90SN12#C504097JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 7,930 | ₹218.33 · 7,930 in stock | View |
 | NTMFS7D8N10GTWG#C2902174onsemi · SO-8-FL-5.9mm | onsemi | SO-8-FL-5.9mm | 4 | ₹508.38 · 4 in stock | View |
