VISHAYDatasheet (PDF)

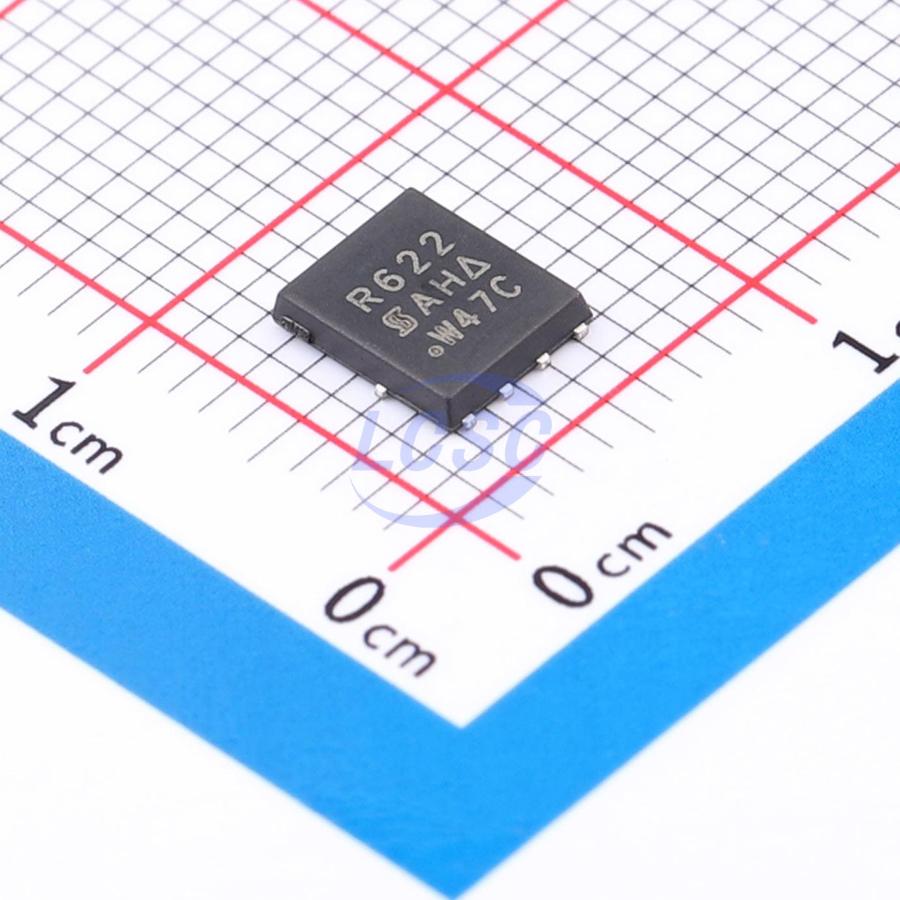

SIR622DP-T1-GE3
N-Channel 150V 12.6A 104W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET N-CH 150V 12.6A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR622DP-T1-GE3
- Store part #
- C3279516
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42 in stock
#C3279516
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹355.08 | ₹355.08 |
| 10+ | ₹312.53 | ₹3,125.30 |
| 30+ | ₹285.87 | ₹8,576.10 |
| 100+ | ₹258.58 | ₹25,858.00 |
| 500+ | ₹246.33 | ₹1,23,165.00 |
| 1,000+ | ₹240.96 | ₹2,40,960.00 |
1 × ₹355.08
₹355.08
excl. GST
₹418.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR622DP-T1-GE3
₹355.08 for 1 + GST
Specifications
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 12.6A
- Ciss-Input Capacitance
- 1.516nF
- Pd - Power Dissipation
- 104W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 20.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 41nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.236 g
Overview
Applications
- Fixed telecom
- DC/DC converter
- Primary and secondary side switch
- Battery management
- Synchronous rectification
Key features
- ThunderFET® technology optimizes balance of RDS(ON), Qg, Qsw and Qoss
- 100 % Rg and UIS tested
