VISHAYDatasheet (PDF)

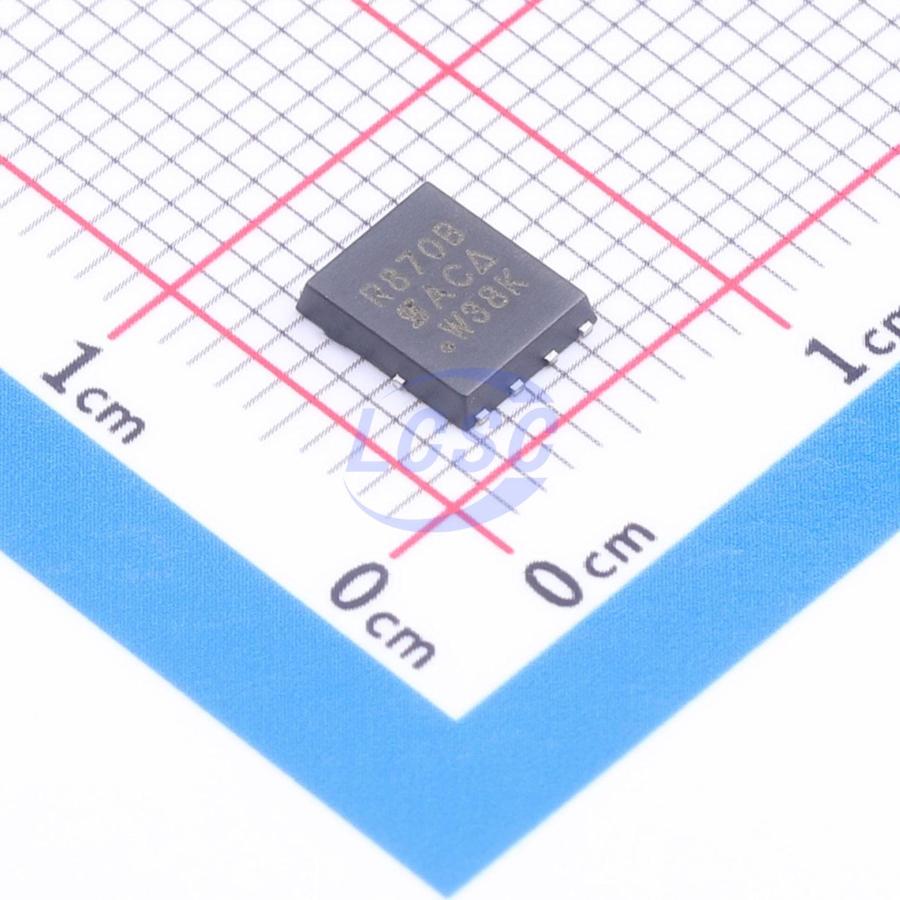

SIR870BDP-T1-RE3
100V 81A 80W 7.7mΩ@4.5V 1 N-channel N-Channel PowerPAK-SO-8 Single FETs, MOSFETs RoHS
PowerPAK-SO-8ROHS3 CompliantActive
N-Channel, Current:18.8A, Voltage:100V
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR870BDP-T1-RE3
- Store part #
- C3279545
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4 in stock
#C3279545
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹354.50 | ₹354.50 |
| 10+ | ₹348.86 | ₹3,488.60 |
| 30+ | ₹345.17 | ₹10,355.10 |
| 100+ | ₹341.27 | ₹34,127.00 |
1 × ₹354.50
₹354.50
excl. GST
₹418.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR870BDP-T1-RE3
₹354.50 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 338pF
- Current - Continuous Drain(Id)
- 81A
- Ciss-Input Capacitance
- 4.87nF
- Pd - Power Dissipation
- 80W
- Reverse Transfer Capacitance (Crss)
- 19pF
- RDS(on)
- 7.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 110nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.365 g
Overview
Applications
- Synchronous rectification
- Primary-side switching
- DC/DC converters
- Power supplies
- Motor drive control
- Battery and load switching
Key features
- 4th Generation Trench FET (TrenchFET Gen IV) Power MOSFET
- Ultra-low R<sub>DS</sub> × Q<sub>g</sub> figure of merit (FOM)
- Optimized for lowest R<sub>DS</sub> × Q<sub>oss</sub> FOM
- 100% Rg and UIS tested
