VISHAYDatasheet (PDF)

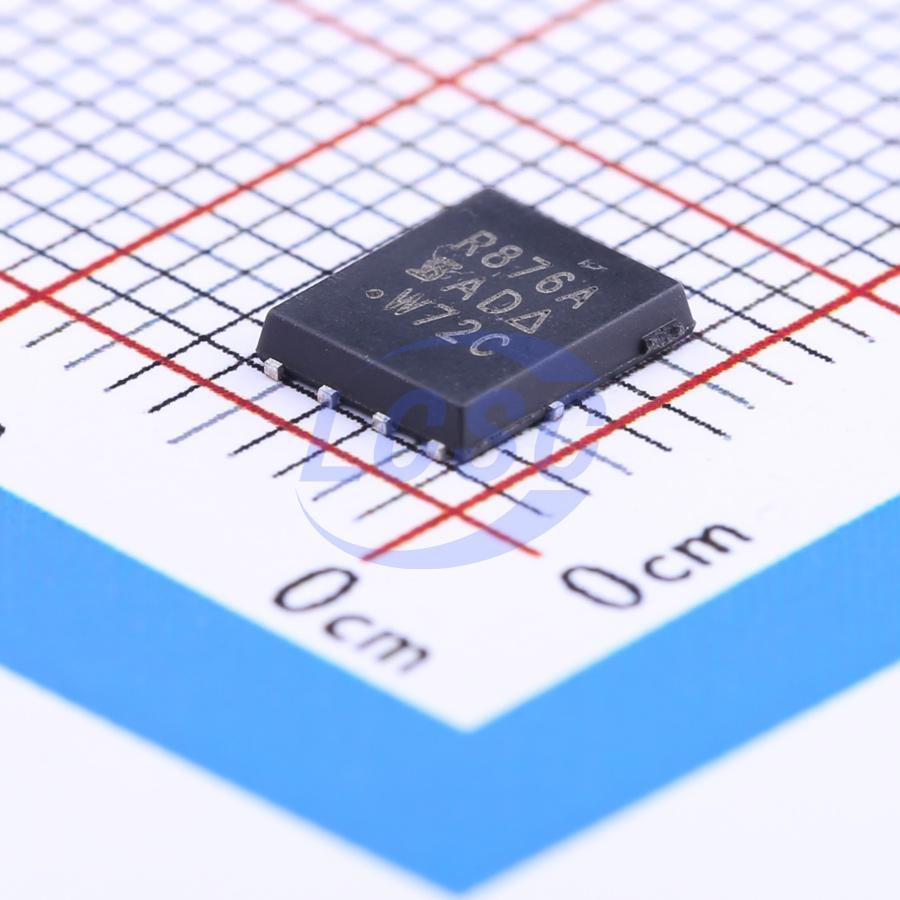

SIR876ADP-T1-GE3
N-Channel 100V 40A 62.5W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS CompliantActive
MOSFET N-CH 100V 40A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIR876ADP-T1-GE3
- Store part #
- C114889
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,359 in stock
#C114889
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.67 | ₹100.67 |
| 10+ | ₹89.82 | ₹898.20 |
| 30+ | ₹84.39 | ₹2,531.70 |
| 100+ | ₹78.97 | ₹7,897.00 |
| 500+ | ₹67.47 | ₹33,735.00 |
| 1,000+ | ₹65.74 | ₹65,740.00 |
1 × ₹100.67
₹100.67
excl. GST
₹118.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIR876ADP-T1-GE3
₹100.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 710pF
- Ciss-Input Capacitance
- 1.63nF
- Pd - Power Dissipation
- 62.5W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 40A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 14.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 49nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
Applications
- DC/DC Primary Side Switch
- Telecom/Server 48 V, Full/Half-Bridge DC/DC
- Industrial
Key features
- Halogen-free According to IEC 61249-2-21 Definition
- TrenchFET Power MOSFET
- 100 % Rg and UIS Tested
- Compliant to RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBA045N10#C28314520HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,411 | ₹48.69 · 1,411 in stock | View |
 | E100N010HL1#C29781179Existar · PDFN5x6-8 | Existar | PDFN5x6-8 | 920 | ₹54.86 · 920 in stock | View |
 | HSBA0048#C508832HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 1,383 | ₹75.17 · 1,383 in stock | View |
 | MS0002Y#C17702012MIRACLE POWER · PDFN5x6-8L | MIRACLE POWER | PDFN5x6-8L | 325 | ₹42.75 · 325 in stock | View |
 | HYG080N10LS1C2#C3011225HUAYI · PDFN5x6-8L | HUAYI | PDFN5x6-8L | 16,204 | ₹57.92 · 16,204 in stock | View |
