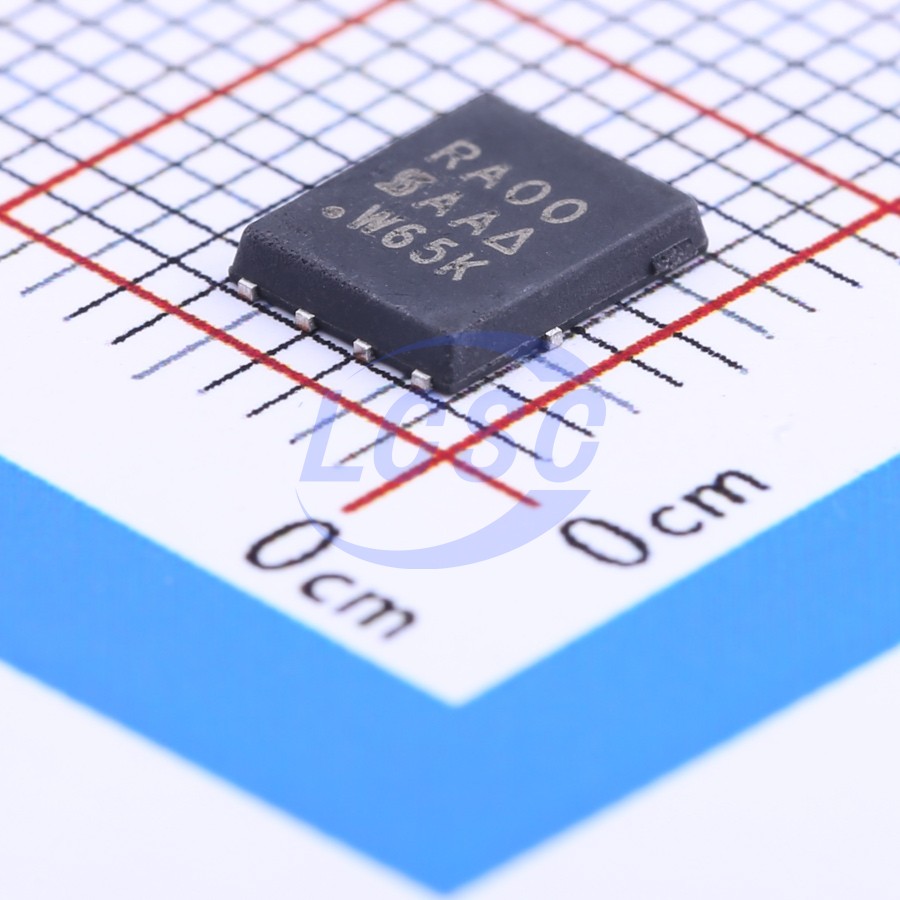

SIRA00DP-T1-GE3
N-Channel 30V 100A 104W Surface Mount PowerPAK-SO-8
PowerPAK-SO-8ROHS3 CompliantActive
MOSFET N-CH 30V 100A PowerPAK-SO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIRA00DP-T1-GE3
- Store part #
- C141540
- Package / case
- PowerPAK-SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,111 in stock
#C141540
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.61 | ₹171.61 |
| 10+ | ₹157.49 | ₹1,574.90 |
| 30+ | ₹148.59 | ₹4,457.70 |
| 100+ | ₹139.67 | ₹13,967.00 |
| 500+ | ₹120.78 | ₹60,390.00 |
| 1,000+ | ₹119.04 | ₹1,19,040.00 |
1 × ₹171.61
₹171.61
excl. GST
₹202.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIRA00DP-T1-GE3
₹171.61 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 3.32nF
- Ciss-Input Capacitance
- 11.7nF
- Pd - Power Dissipation
- 104W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 1.35mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 220nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.131 g
Overview
N-Channel 30 V (D-S) MOSFET. PowerPAK is a new package technology developed around the SO-8 footprint. The PowerPAK SO-8 shares the same footprint and pin-out as the standard SO-8, offering a direct drop-in replacement. As a leadless package, it utilizes the entire SO-8 footprint to accommodate a larger die than the standard SO-8. The exposed thermal pad on the bottom of the die provides a direct, low-resistance thermal path to the mounting substrate, and the package height is lower than that of the standard SO-8, making it suitable for space-constrained applications.
Applications
- Synchronous Rectification
- ORing
- High Power Density DC/DC VRMs and Embedded DC/DC
Key features
- TrenchFET Gen IV Power MOSFET
- 100% Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRA80DP-T1-RE3#C3289458VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | On request | ₹73.31 · 0 in stock | View |
 | DON220N03T#C48542681DOINGTER · DFN-8(5x6) | DOINGTER | DFN-8(5x6) | 2,457 | ₹76.02 · 2,457 in stock | View |
 | FDMS8320L#C605040onsemi · Power-56 | onsemi | Power-56 | 2 | ₹850.94 · 2 in stock | View |
 | IPC100N04S5L1R1ATMA1-HXY#C53263395HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 96 | ₹224.01 · 96 in stock | View |
 | NTMFS5C426NT1G-HXY#C53263396HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 34 | ₹87.73 · 34 in stock | View |
