VISHAYDatasheet (PDF)

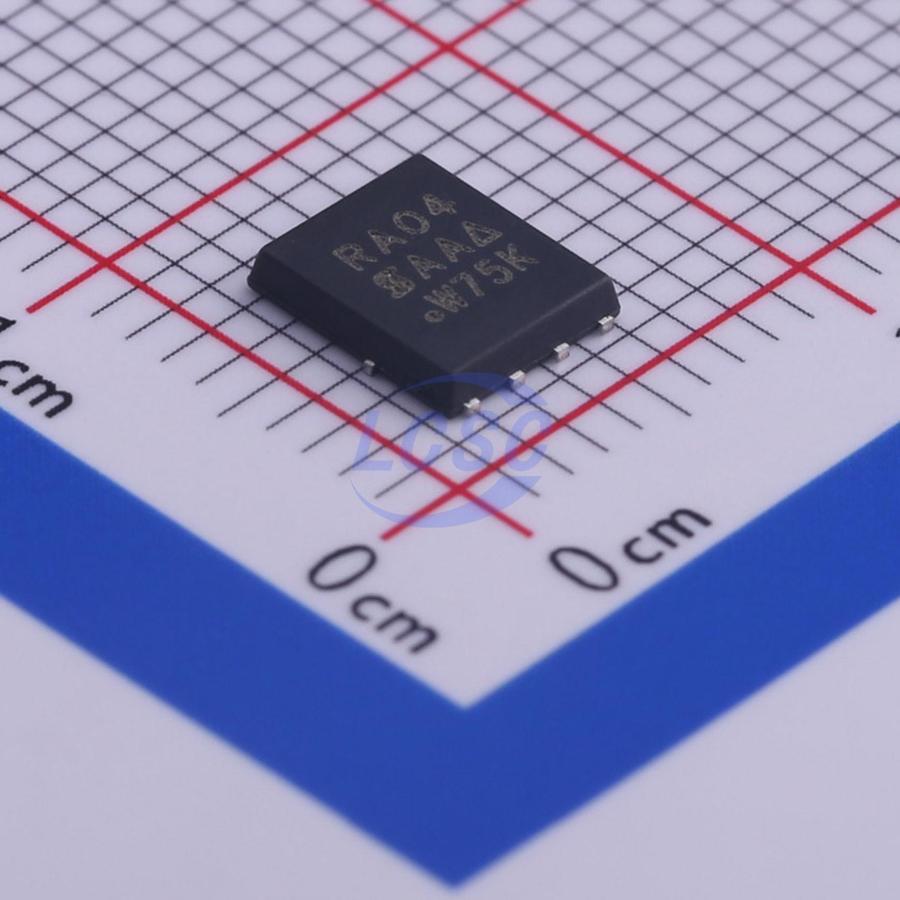

SIRA04DP-T1-GE3
N-Channel 30V 28.7A 3.2W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 30V 28.7A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIRA04DP-T1-GE3
- Store part #
- C469519
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,071 in stock
#C469519
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.91 | ₹35.91 |
1 × ₹35.91
₹35.91
excl. GST
₹42.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIRA04DP-T1-GE3
₹35.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 28.7A
- Ciss-Input Capacitance
- 3.595nF
- Pd - Power Dissipation
- 3.2W
- Reverse Transfer Capacitance (Crss)
- 79pF
- RDS(on)
- 2.15mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
N-Channel 30 V (D-S) MOSFET，TrenchFET Gen IV power MOSFET，100 % Rg and UIS tested。PowerPAK SO-8 utilizes the same footprint and the same pin-outs as the standard SO-8. This allows PowerPAK to be substituted directly for a standard SO-8 package. Being a leadless package, PowerPAK SO-8 utilizes the entire SO-8 footprint, freeing space normally occupied by the leads, and thus allowing it to hold a larger die than a standard SO-8. The bottom of the die attach pad is exposed for the purpose of providing a direct, low resistance thermal path to the substrate the device is mounted on. Finally, the package height is lower than the standard SO-8, making it an excellent choice for applications with space constraints.
Applications
- Synchronous rectification
- High power density DC/DC
- VRMs and embedded DC/DC
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSD17312Q5#C2860510TI · VSON-CLIP-8(6x5) | TI | VSON-CLIP-8(6x5) | 29 | ₹244.46 · 29 in stock | View |
 | CSD17501Q5A#C529274TI · SON-8(5x6) | TI | SON-8(5x6) | 1,672 | ₹231.21 · 1,672 in stock | View |
 | SWHA60N04V#C5151873Samwin · DFN-8(5x6) | Samwin | DFN-8(5x6) | 4 | ₹58.54 · 4 in stock | View |
 | CSD17581Q5A#C471056TI · SON-8(5x6) | TI | SON-8(5x6) | 6,591 | ₹56.04 · 6,591 in stock | View |
 | CSD17555Q5A#C543034TI · SON-8(5x6) | TI | SON-8(5x6) | 11 | ₹400.15 · 11 in stock | View |
