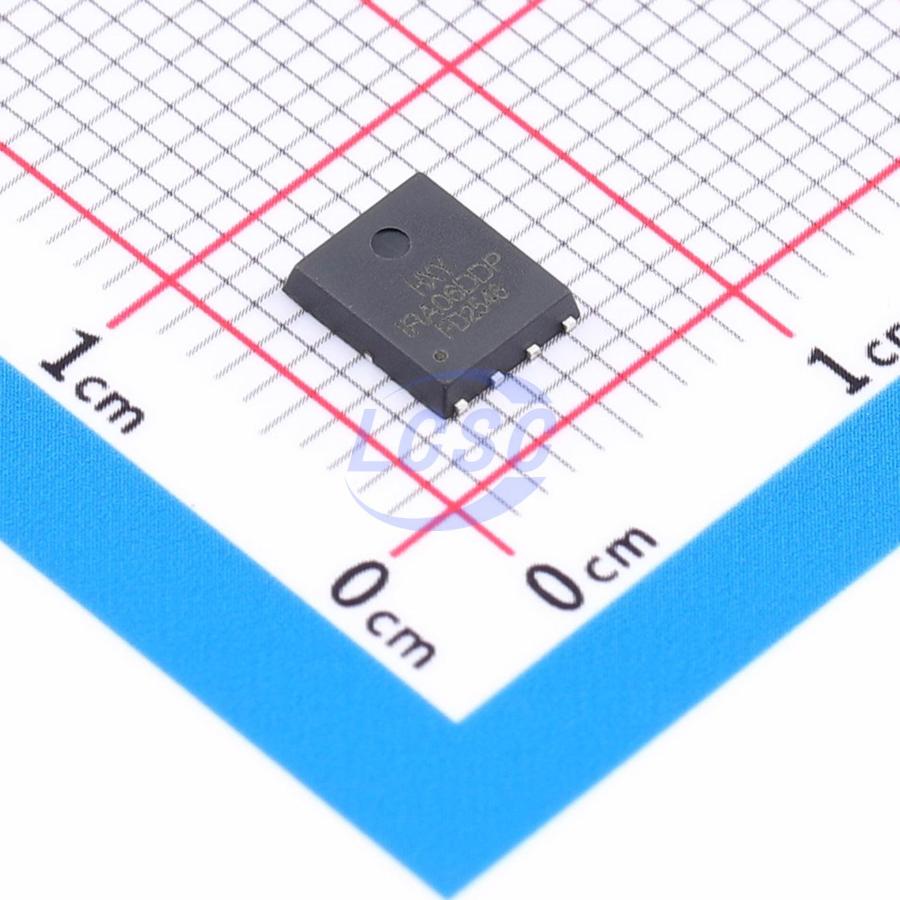

HXY MOSFETDatasheet (PDF)
SIRA06DDP-T1-UE3-HXY
187W 30V 150A 2mΩ@10V 1 N-channel N-Channel DFN-8L(5x6) Single FETs, MOSFETs
DFN-8L(5x6)RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SIRA06DDP-T1-UE3-HXY
- Store part #
- C53263052
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
98 in stock
#C53263052
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.12 | ₹80.12 |
| 10+ | ₹64.22 | ₹642.20 |
| 30+ | ₹57.35 | ₹1,720.50 |
| 100+ | ₹48.75 | ₹4,875.00 |
| 500+ | ₹45.10 | ₹22,550.00 |
| 1,000+ | ₹42.75 | ₹42,750.00 |
1 × ₹80.12
₹80.12
excl. GST
₹94.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIRA06DDP-T1-UE3-HXY
₹80.12 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 340pF
- Ciss-Input Capacitance
- 4.345nF
- Pd - Power Dissipation
- 187W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 150A
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 56.9nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6508-HXY#C22366646HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 9,165 | ₹65.54 · 9,165 in stock | View |
 | RS1E280BNTB-HXY#C53262973HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹91.06 · 97 in stock | View |
 | RS1E281BNTB1-HXY#C53263040HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 97 | ₹133.11 · 97 in stock | View |
 | RS1E301GNTB1-HXY#C53263041HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹149.70 · 98 in stock | View |
 | NVMFS4C03NT1G-HXY#C53263043HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 98 | ₹108.68 · 98 in stock | View |
