HXY MOSFETDatasheet (PDF)

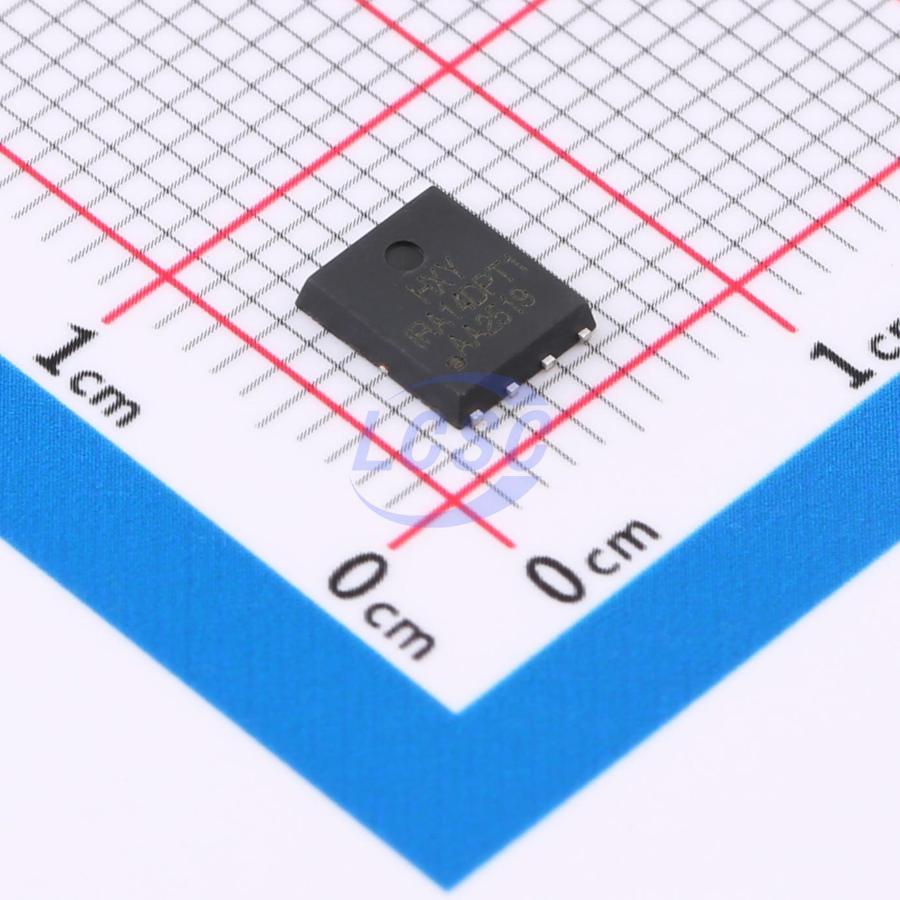

SIRA14DP-T1-GE3-HXY
N-Channel 30V 60A 30W Surface Mount DFN-8L(5x6)
DFN-8L(5x6)ROHS CompliantActive
MOSFET N-CH 30V 60A DFN-8L(5x6)
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SIRA14DP-T1-GE3-HXY
- Store part #
- C48996327
- Package / case
- DFN-8L(5x6)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C48996327
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.28 | ₹56.28 |
| 10+ | ₹44.12 | ₹441.20 |
| 30+ | ₹38.90 | ₹1,167.00 |
| 100+ | ₹32.60 | ₹3,260.00 |
| 500+ | ₹29.78 | ₹14,890.00 |
| 1,000+ | ₹28.03 | ₹28,030.00 |
1 × ₹56.28
₹56.28
excl. GST
₹66.41 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SIRA14DP-T1-GE3-HXY
₹56.28 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 60A
- Output Capacitance(Coss)
- 498pF
- Ciss-Input Capacitance
- 814pF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 4.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 8nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.145 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AON6576-HXY#C22367000HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 355 | ₹26.67 · 355 in stock | View |
 | NTMFS4939N-HXY#C22367001HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 125 | ₹39.57 · 125 in stock | View |
 | SM95N03AD1RL-HXY#C22367003HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 135 | ₹28.78 · 135 in stock | View |
 | FDMS0312AS-HXY#C22367004HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 495 | ₹44.57 · 495 in stock | View |
 | NTMFS4C09NT1G-HXY#C48996326HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 80 | ₹76.24 · 80 in stock | View |
