VISHAYDatasheet (PDF)

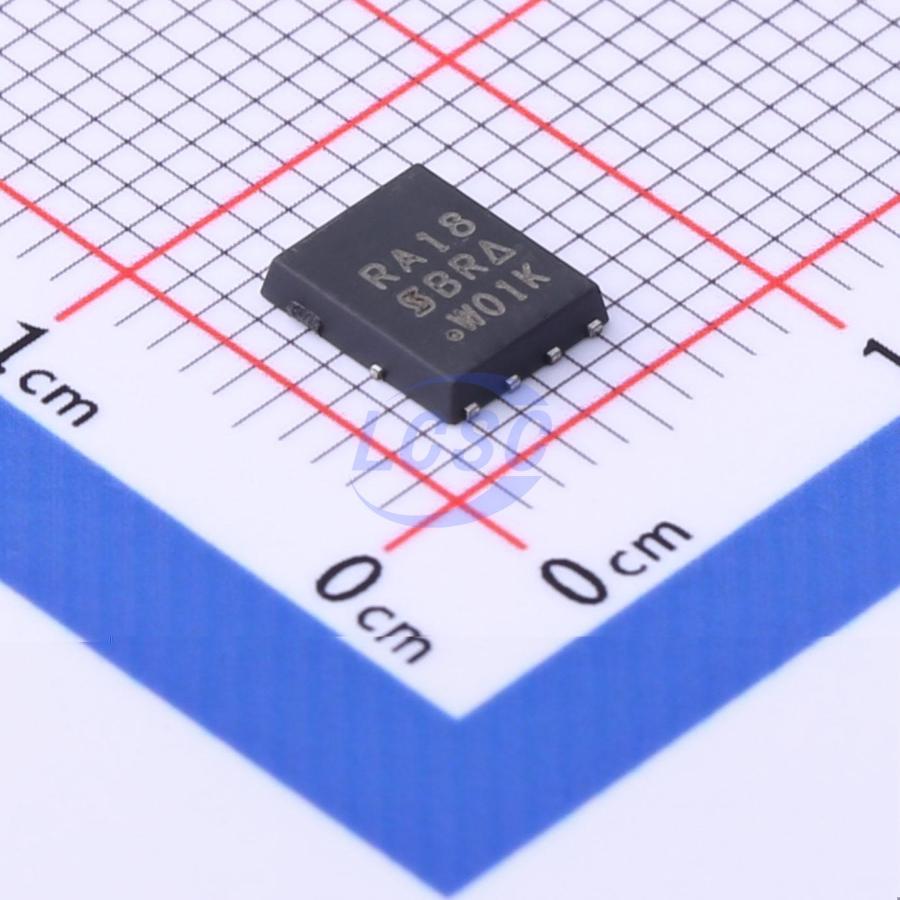

SIRA18DP-T1-GE3
N-Channel 30V 33A 14.7W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS CompliantActive
MOSFET N-CH 30V 33A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIRA18DP-T1-GE3
- Store part #
- C144962
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C144962
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.56 | ₹44.56 |
| 10+ | ₹43.46 | ₹434.60 |
| 30+ | ₹42.81 | ₹1,284.30 |
| 100+ | ₹42.16 | ₹4,216.00 |
1 × ₹44.56
₹44.56
excl. GST
₹52.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIRA18DP-T1-GE3
₹44.56 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 287pF
- Ciss-Input Capacitance
- 1nF
- Pd - Power Dissipation
- 14.7W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 33A
- Reverse Transfer Capacitance (Crss)
- 34pF
- RDS(on)
- 12mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 21.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
The PowerPAK package was developed around the SO - 8 package. The PowerPAK SO - 8 utilizes the same footprint and the same pin - outs as the standard SO - 8. This allows PowerPAK to be substituted directly for a standard SO - 8 package. Being a leadless package, PowerPAK SO - 8 utilizes the entire SO - 8 footprint, freeing space normally occupied by the leads, and thus allowing it to hold a larger die than a standard SO - 8. The bottom of the die attach pad is exposed for the purpose of providing a direct, low resistance thermal path to the substrate the device is mounted on. Finally, the package height is lower than the standard SO - 8, making it an excellent choice for applications with space constraints.
Applications
- DC/DC conversion
- Battery protection
- Load switching
- DC/AC inverters
Key features
- TrenchFET® Gen IV power MOSFET
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRA88DP-T1-GE3#C727319VISHAY · PowerPAK-SO-8 | VISHAY | PowerPAK-SO-8 | 1 | ₹31.32 · 1 in stock | View |
| DMTH6012LPSWQ-13#C5673668DIODES · PowerDI5060-8 | DIODES | PowerDI5060-8 | 2 | ₹347.34 · 2 in stock | View | |
 | SED4060G#C238671SINO-IC · DFN-8(5x6) | SINO-IC | DFN-8(5x6) | 15 | ₹52.58 · 15 in stock | View |
| YFWG50N10NF#C55191579YFW · PDFN-8L(5x6) | YFW | PDFN-8L(5x6) | 4,955 | ₹36.17 · 4,955 in stock | View | |
 | BRCS080N04ZC#C22448996BLUE ROCKET · PDFN-8(5x6) | BLUE ROCKET | PDFN-8(5x6) | 3,235 | ₹20.32 · 3,235 in stock | View |
