VISHAYDatasheet (PDF)

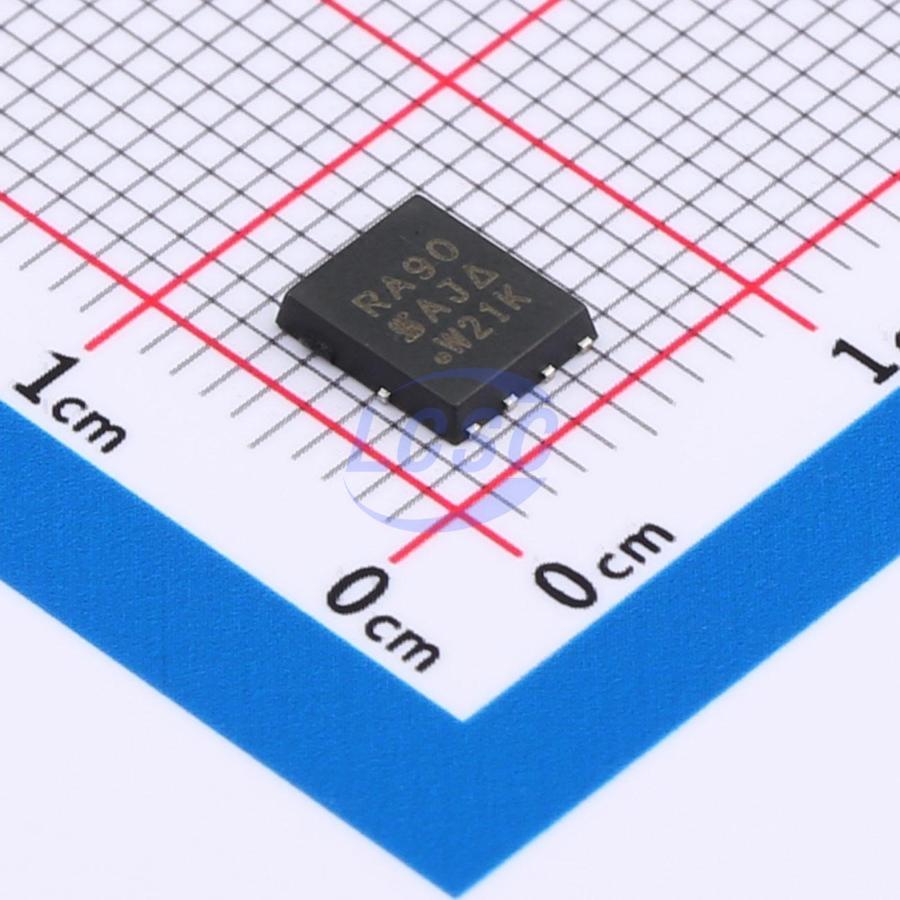

SIRA90DP-T1-RE3
N-Channel 30V 65.8A 6.25W Surface Mount PowerPAKSO-8
PowerPAKSO-8ROHS3 CompliantActive
MOSFET N-CH 30V 65.8A PowerPAKSO-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIRA90DP-T1-RE3
- Store part #
- C6680143
- Package / case
- PowerPAKSO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,860 in stock
#C6680143
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹216.27 | ₹216.27 |
| 10+ | ₹179.64 | ₹1,796.40 |
| 30+ | ₹159.81 | ₹4,794.30 |
| 100+ | ₹137.13 | ₹13,713.00 |
| 500+ | ₹126.89 | ₹63,445.00 |
| 1,000+ | ₹122.52 | ₹1,22,520.00 |
1 × ₹216.27
₹216.27
excl. GST
₹255.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIRA90DP-T1-RE3
₹216.27 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 65.8A
- Ciss-Input Capacitance
- 10.18nF
- Pd - Power Dissipation
- 6.25W
- Reverse Transfer Capacitance (Crss)
- 306pF
- RDS(on)
- 0.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.574 g
Overview
Applications
- Synchronous rectification
- OR-ing
- High power density DC/DC
- VRMs and embedded DC/DC
- High current load switching
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SIRA90DP-T1-GE3#C5754031VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 8 | ₹273.04 · 8 in stock | View |
 | CMSA006N03L#C52118382Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 857 | ₹90.04 · 857 in stock | View |
 | SIR668DP-T1-RE3#C6680137VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 2 | ₹354.29 · 2 in stock | View |
 | SNCEP40T13GU#C49206924JSMSEMI · PDFN-8L(5x6) | JSMSEMI | PDFN-8L(5x6) | 4,833 | ₹60.20 · 4,833 in stock | View |
 | SIR626LDP-T1-RE3#C6228287VISHAY · PowerPAKSO-8 | VISHAY | PowerPAKSO-8 | 200 | ₹405.27 · 200 in stock | View |
