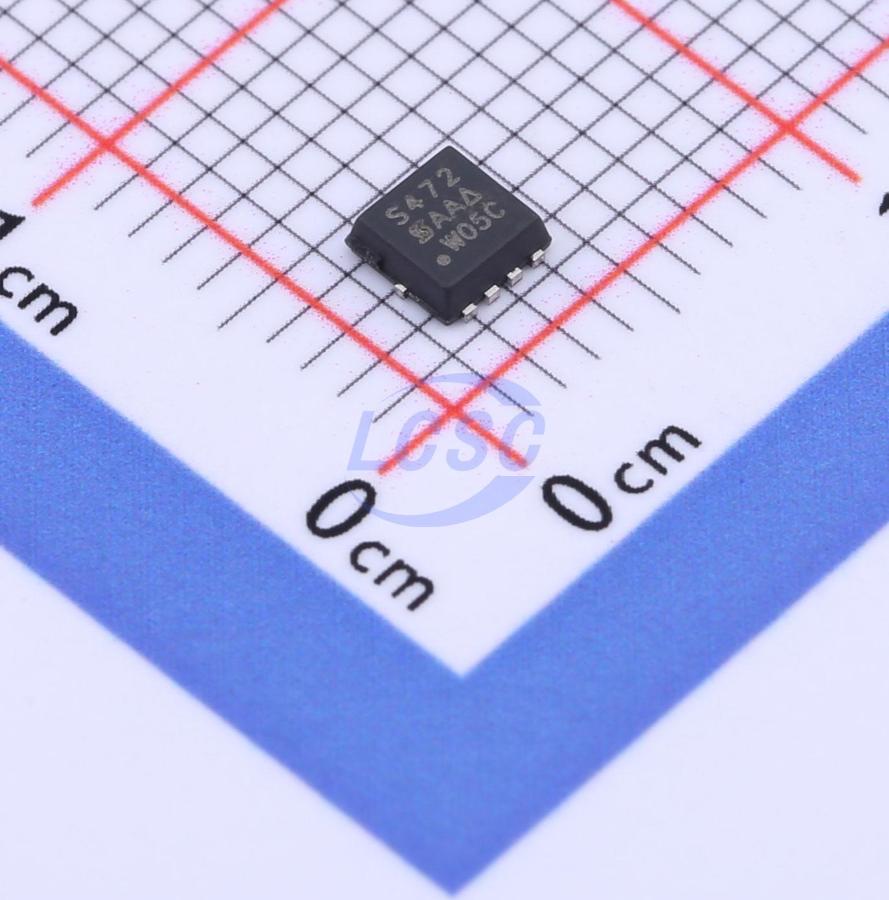

SIS472DN-T1-GE3
N-Channel 30V 3.5W 28W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SIS472DN-T1-GE3
- Store part #
- C727441
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,443 in stock
#C727441
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹40.70 | ₹40.70 |
| 10+ | ₹35.26 | ₹352.60 |
| 30+ | ₹32.86 | ₹985.80 |
| 100+ | ₹29.82 | ₹2,982.00 |
| 500+ | ₹28.51 | ₹14,255.00 |
| 1,000+ | ₹27.86 | ₹27,860.00 |
1 × ₹40.70
₹40.70
excl. GST
₹48.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SIS472DN-T1-GE3
₹40.70 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 195pF
- Ciss-Input Capacitance
- 997pF
- Pd - Power Dissipation
- 3.5W;28W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 8.9mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 9.8nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
Applications
- Notebook CPU Core - High-Side Switch
Key features
- Halogen-free According to IEC 61249-2-2 Definition
- TrenchFET Power MOSFET Optimized for High-Side Synchronous Rectifier Operation
- 100 % Rg Tested
- 100 % UIS Tested
- Compliant to RoHS Directive 2002/95/EC
- RoHS COMPLIANT HALOGEN FREE
