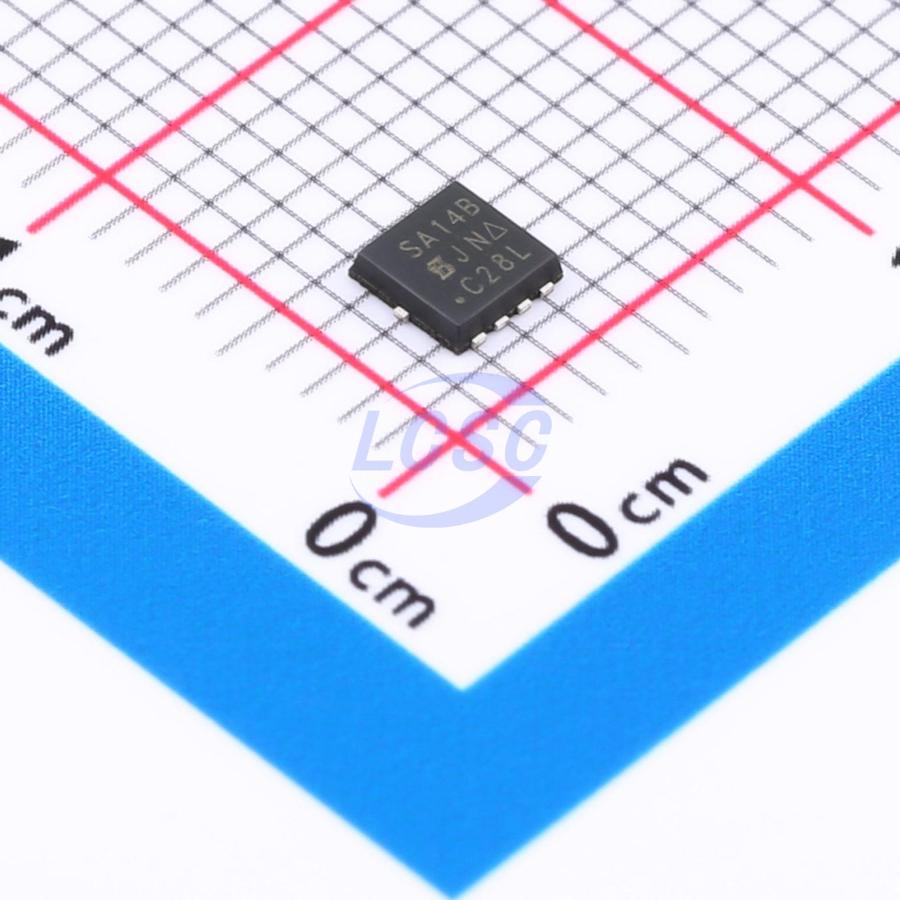

SISA14BDN-T1-GE3
N-Channel 30V 72A 45W Surface Mount PowerPAK1212-8
PowerPAK1212-8ROHS3 CompliantActive
MOSFET N-CH 30V 72A PowerPAK1212-8
- Manufacturer
- VISHAY
- Manufacturer part #
- SISA14BDN-T1-GE3
- Store part #
- C3289414
- Package / case
- PowerPAK1212-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,267 in stock
#C3289414
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.05 | ₹63.05 |
| 10+ | ₹55.95 | ₹559.50 |
| 30+ | ₹52.30 | ₹1,569.00 |
| 100+ | ₹48.63 | ₹4,863.00 |
| 500+ | ₹46.49 | ₹23,245.00 |
| 1,000+ | ₹45.41 | ₹45,410.00 |
1 × ₹63.05
₹63.05
excl. GST
₹74.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SISA14BDN-T1-GE3
₹63.05 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 72A
- Ciss-Input Capacitance
- 917pF
- Pd - Power Dissipation
- 45W
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 5.38mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.149 g
Overview
This MOSFET is designed to meet the stringent requirements of automotive applications. It complies with the AEC-Q101 standard and supports Production Part Approval Process (PPAP) documentation.
Applications
- High power density DC/DC
- Synchronous rectification
- VRMs and embedded DC/DC
- Battery protection
Key features
- TrenchFET Gen IV power MOSFET
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJAB75N03U#C19267735JSCJ · PDFNWB3.3x3.3-8L | JSCJ | PDFNWB3.3x3.3-8L | 4,860 | ₹49.61 · 4,860 in stock | View |
 | CMSC3050#C53896394Cmos · DFN-8(3.3x3.3) | Cmos | DFN-8(3.3x3.3) | 115 | ₹19.43 · 115 in stock | View |
 | BSZ0503NSI#C534664Infineon · TSDSON-8-EP(3.3x3.3) | Infineon | TSDSON-8-EP(3.3x3.3) | 25 | ₹199.47 · 25 in stock | View |
 | AGM3012AP-CP#C22400167AGMSEMI · PDFN-8(3.3x3.3) | AGMSEMI | PDFN-8(3.3x3.3) | 5,115 | ₹47.22 · 5,115 in stock | View |
 | NTTFS4C05NTAG#C184139onsemi · PDFN-8(3.3x3.3) | onsemi | PDFN-8(3.3x3.3) | 824 | ₹70.70 · 824 in stock | View |
