VISHAYDatasheet (PDF)

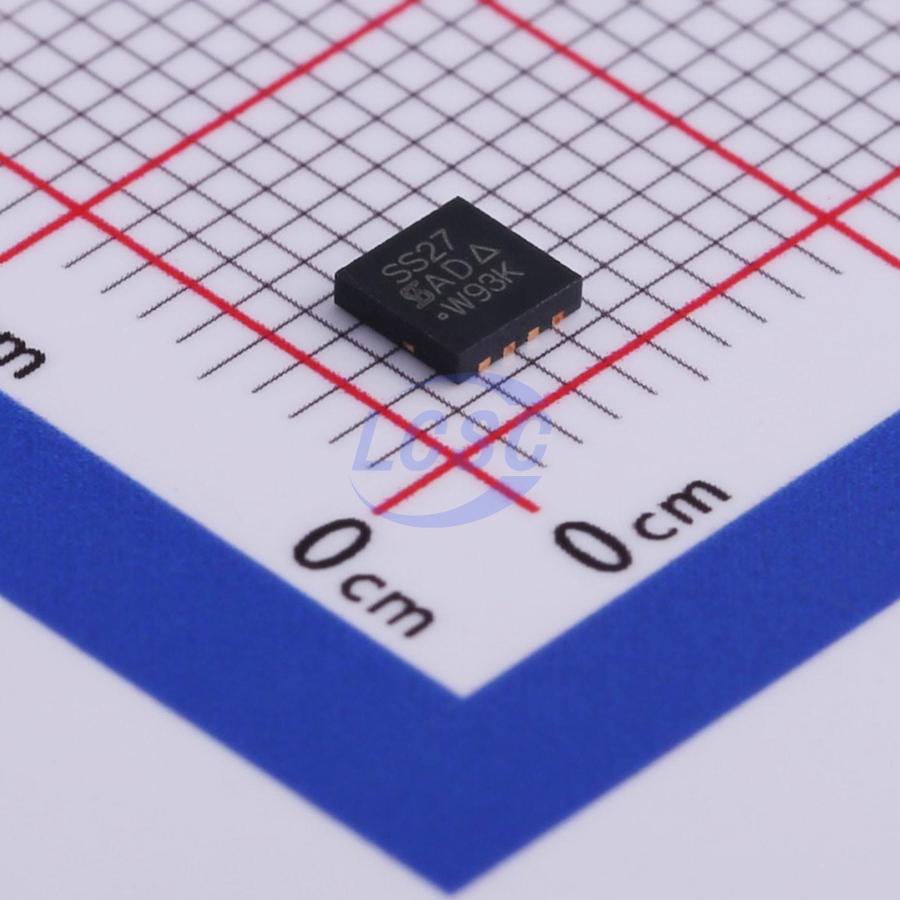

SISS27DN-T1-GE3
P-Channel 30V 50A 57W Surface Mount PowerPAK1212-8S
PowerPAK1212-8SROHS3 CompliantActive
MOSFET P-CH 30V 50A PowerPAK1212-8S
- Manufacturer
- VISHAY
- Manufacturer part #
- SISS27DN-T1-GE3
- Store part #
- C506609
- Package / case
- PowerPAK1212-8S
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,369 in stock
#C506609
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.90 | ₹135.90 |
| 10+ | ₹111.73 | ₹1,117.30 |
| 30+ | ₹99.53 | ₹2,985.90 |
| 100+ | ₹87.56 | ₹8,756.00 |
| 500+ | ₹78.84 | ₹39,420.00 |
| 1,000+ | ₹75.13 | ₹75,130.00 |
1 × ₹135.90
₹135.90
excl. GST
₹160.36 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SISS27DN-T1-GE3
₹135.90 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 530pF
- Ciss-Input Capacitance
- 5.25nF
- Pd - Power Dissipation
- 57W
- Operating Temperature
- -50℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 485pF
- RDS(on)
- 4.6mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 92nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.062 g
Overview
Applications
- Notebook computers and mobile computing
- Adaptor switch - Load switch - DC/DC converter - Power management
Key features
- TrenchFET Power MOSFET
- Low thermal resistance PowerPAK package with small size and low 0.75 mm profile
- 100 % Rg and UIS tested
- RoHS COMPLIANT HALOGEN FREE
