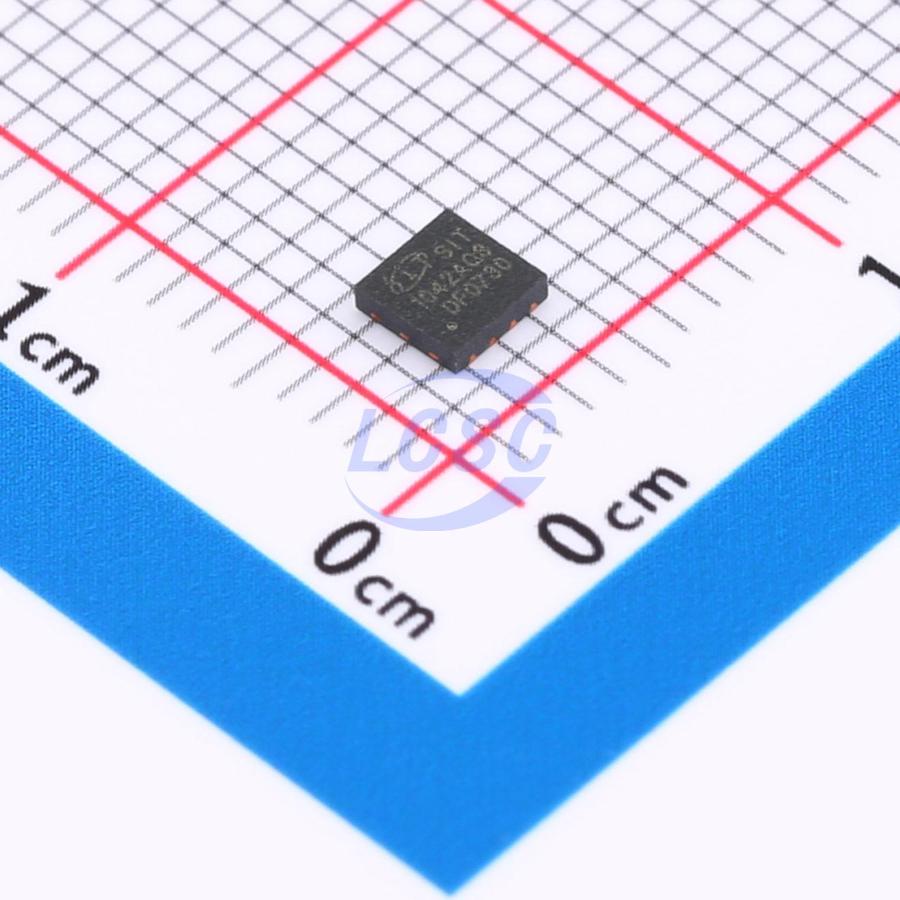

SIT1042AQTK/3
4.5V~5.5V CAN FD Transceiver 5Mbps DFN-8(3x3) Drivers, Receivers, Transceivers RoHS
DFN-8(3x3)ROHS CompliantActive
CAN FD standby mode bus transceiver with 5V power supply, I/O ports compatible with 3.3V, and ±58V bus voltage withstand capability
- Manufacturer
- SIT
- Manufacturer part #
- SIT1042AQTK/3
- Store part #
- C5382543
- Package / case
- DFN-8(3x3)
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,826 in stock
#C5382543
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹84.31 | ₹84.31 |
| 10+ | ₹66.49 | ₹664.90 |
| 30+ | ₹58.89 | ₹1,766.70 |
| 100+ | ₹49.33 | ₹4,933.00 |
| 500+ | ₹45.21 | ₹22,605.00 |
| 1,000+ | ₹42.59 | ₹42,590.00 |
1 × ₹84.31
₹84.31
excl. GST
₹99.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 6,000 per reel
SIT1042AQTK/3
₹84.31 for 1 + GST
Specifications
- Voltage - Supply
- 4.5V~5.5V
- Type
- CAN FD Transceiver
- number of channels
- 1
- Data Rate
- 5Mbps
- Operating Temperature
- -40℃~+150℃
- Features
- Low-power mode;Wake-up function;TXD dominant timeout;Thermal shutdown protection;Undervoltage Protection;Short-Circuit Protection;ESD protection;Enable
- Supply Current
- 70mA
- Quiescent Supply Current
- 500nA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 6,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.113 g
Overview
SIT1042AQ is an interface IC designed for use between a CAN protocol controller and the physical bus, suitable for automotive and industrial control applications. It supports 5Mbps CAN FD with flexible data rate and provides differential signal transmission between the bus and the CAN protocol controller. This device is an upgraded version of the SIT1042Q, featuring improved bus signal symmetry and lower EMI. In addition, the SIT1042AQ is fully compatible with the SIT1042Q.
Key features
- Compatible with ISO 11898 and SAE J2284-1 to SAE J2284-5 standards
- AEC-Q100 qualified
- Built-in overtemperature protection
- Bus pins rated for ±58V
- Driver (TXD) dominant timeout
- Standby bus (BUS) dominant timeout
- Low-power standby mode with wake-up capability
- I/O voltage range of SIT1042AQT/3, SIT1042AQT/31, SIT1042AQTK/3, and SIT1042AQTK/31 supports 3.3V and 5V MCU
- Undervoltage lockout on VCC and VIO supply pins
- High-speed CAN support up to 5Mbps CAN FD flexible data rate
- TXD to RXD typical loop delay less than 100ns
- High EMI immunity
- Unpowered node does not disturb the bus
- DFN 3×3–8 small leadless package support
