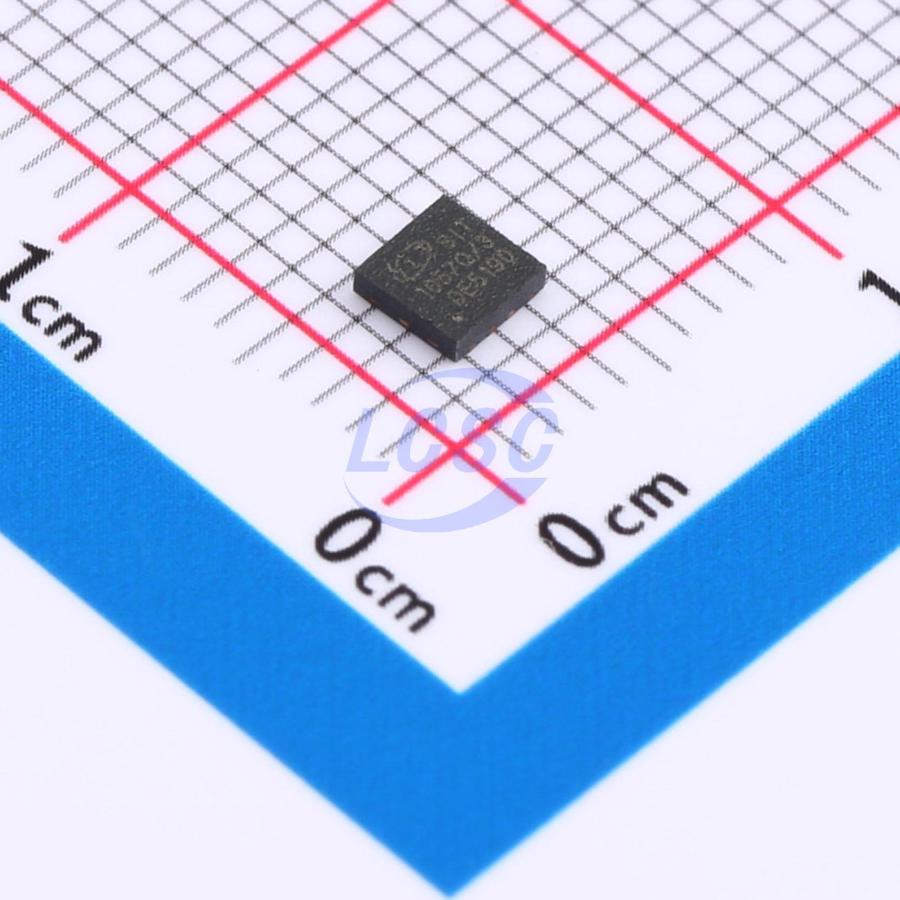

SIT1057QTK/3

CAN FD Transceiver 4.75V~5.25V 5Mbps DFN3x3-8 Drivers, Receivers, Transceivers RoHS

DFN3x3-8ROHS CompliantActive

SIT1057Q is an interface chip between the CAN protocol controller and the physical bus, supporting 5Mbps Flexible Data-Rate (CAN FD) and fully compliant with “ISO11898-2:2016/SAEJ2284-1~SAE J2284-5” standards.

Manufacturer: SIT
Manufacturer part #: SIT1057QTK/3
Store part #: C7433967
Package / case: DFN3x3-8
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,525 in stock

#C7433967

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
5+	₹45.64	₹228.20
50+	₹41.34	₹2,067.00
150+	₹39.50	₹5,925.00
500+	₹37.20	₹18,600.00
2,500+	₹36.18	₹90,450.00
6,000+	₹35.56	₹2,13,360.00

Quantity (min 5, multiples of 5)

5 × ₹45.64

₹228.20

excl. GST

₹269.28 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 6,000 per reel

SIT1057QTK/3

₹228.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: CAN FD Transceiver
Voltage - Supply: 4.75V~5.25V
number of channels: 1
Data Rate: 5Mbps
Operating Temperature: -40℃~+150℃
Features: Thermal shutdown protection;TXD dominant timeout;Silent mode;Undervoltage Protection;ESD protection
Supply Current: 70mA
Quiescent Supply Current: 1.2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 6,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.121 g

Overview

SIT1057Q is an interface chip for use between a CAN protocol controller and the physical bus, suitable for trucks, buses, passenger cars, industrial control, and other applications. It supports 5Mbps Flexible Data-Rate, features differential signal transmission capability between the bus and the CAN protocol controller, and is fully compliant with the ISO 11898-2:2016/SAE J2284-1~SAE J2284-5 standard.

Applications

Truck
Bus
Passenger Car
Industrial Control

Key features

Fully compliant with ISO 11898-2:2016/SAE J2284-1~SAE J2284-5 standards
AEC-Q100 qualified
Built-in over-temperature protection
Bus pins ±40V voltage tolerance
Driver (TXD) dominant state timeout
Silent receive mode
SIT1057QT/3 and SIT1057QTK/3 I/O voltage range supports 3.3V and 5V MCU
Under-voltage lockout on VCC and VIO supply pins
High-speed CAN, supports 5Mbps CAN FD (Flexible Data Rate)
High EMI immunity
Unpowered node does not disturb the bus
TXD to RXD typical loop delay less than 100ns
Available in green, RoHS-compliant, lead-free packages
