VBsemi ElecDatasheet (PDF)

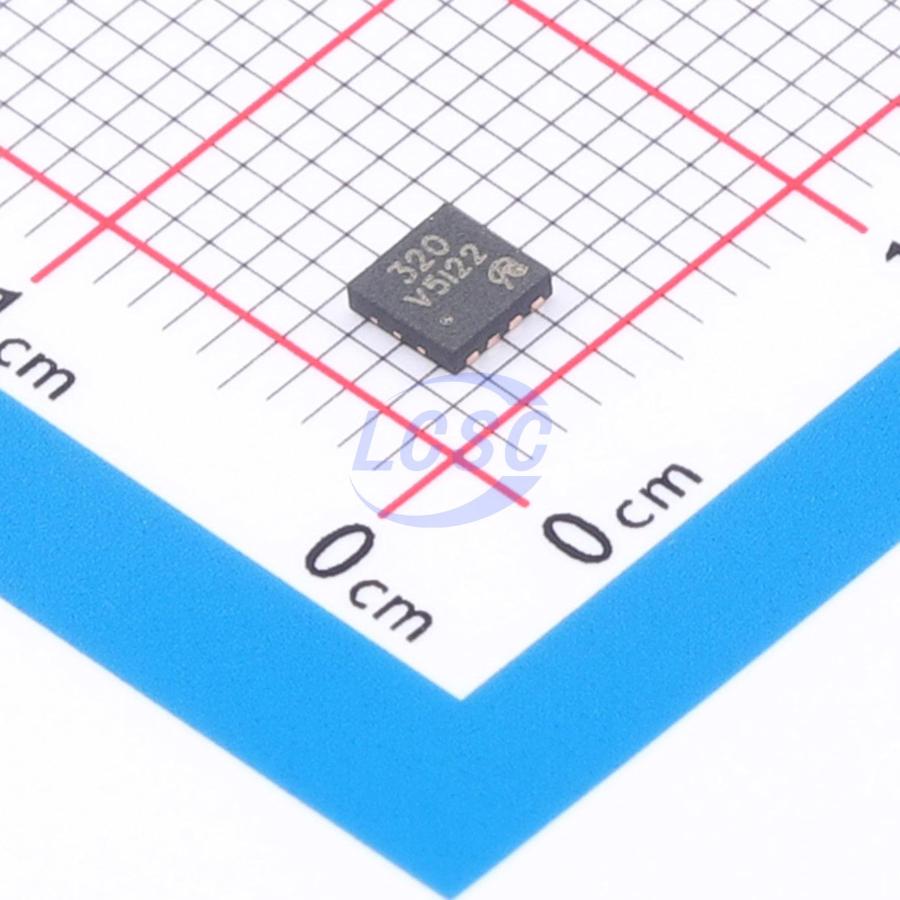

SiZ320DT-VB
56W 30V 35A 9mΩ@10V 2 N-Channel N-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SiZ320DT-VB
- Store part #
- C52110108
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52110108
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.38 | ₹110.38 |
| 10+ | ₹91.00 | ₹910.00 |
| 30+ | ₹81.21 | ₹2,436.30 |
| 100+ | ₹71.63 | ₹7,163.00 |
| 500+ | ₹59.22 | ₹29,610.00 |
| 1,000+ | ₹56.17 | ₹56,170.00 |
1 × ₹110.38
₹110.38
excl. GST
₹130.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SiZ320DT-VB
₹110.38 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 257pF
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 56W
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 35A
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 9mΩ@10V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.031 g
Overview
Applications
- Set-Top Box
- Low-Current DC/DC Converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single-pulse avalanche energy (UIS)
- 100% tested for gate resistance (Rg)
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| FDMC7200S-VB#C52109965VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹110.38 · 10 in stock | View | |
 | FDMC8200-VB#C52109970VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹110.38 · 10 in stock | View |
 | SiZ340ADT-T1-GE3-VB#C52110109VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | 10 | ₹110.38 · 10 in stock | View |
 | VBQF3310G#C52110133VBsemi Elec · DFN-8(3x3) | VBsemi Elec | DFN-8(3x3) | On request | ₹110.38 · 0 in stock | View |
