SuntekDatasheet (PDF)

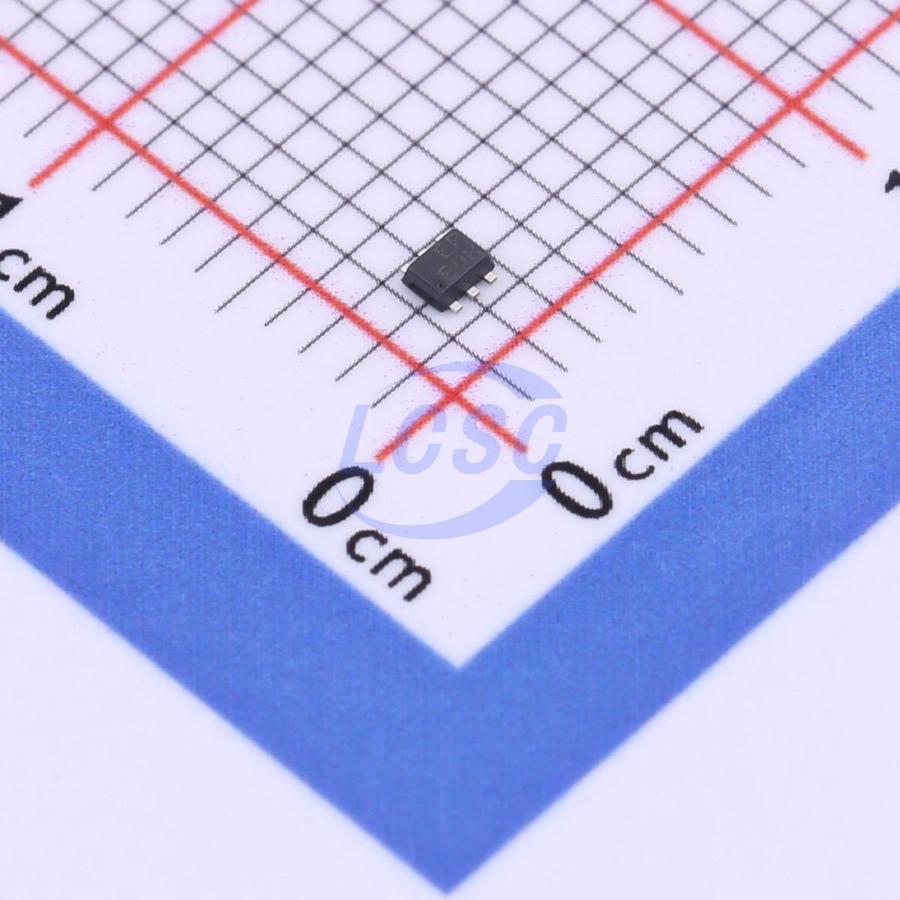

SK6637
800kHz Step-down type Adjustable 805mV~5V 3A SOT-563 Voltage Regulators - DC DC Switching Regulators
SOT-563RoHSActive
17V 3A 800KHz Synchronous Step-Down Regulator
- Manufacturer
- Suntek
- Manufacturer part #
- SK6637
- Store part #
- C5120330
- Package / case
- SOT-563
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,527 in stock
#C5120330
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.51 | ₹55.51 |
| 10+ | ₹43.59 | ₹435.90 |
| 30+ | ₹38.61 | ₹1,158.30 |
| 100+ | ₹32.31 | ₹3,231.00 |
| 500+ | ₹29.49 | ₹14,745.00 |
| 1,000+ | ₹27.76 | ₹27,760.00 |
1 × ₹55.51
₹55.51
excl. GST
₹65.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SK6637
₹55.51 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 800kHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~17V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 805mV~5V
- Output Current
- 3A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.024 g
Overview
The SK6637 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous output current over a wide input supply range, with excellent load and line regulation. ECOT control operation provides very fast transient response and easy loop design as well as very tight output regulation. The SK6637 requires a minimal number of readily available, external components and is available in a space saving SOT563 package.
Applications
- Digital Set-top Box (STB)
- Tablet Personal Computer (Pad)
- Flat-Panel Television and Monitor
- Wi-Fi Router / AP
- Digital Video Recorder (DVR)
- Portable Media Player (PMP)
- Cable Modem / XDSL General Purposes
Key features
- Wide 4.5V to 17V Operating Input Range
- 3A Continuous Output Current
- 800KHz Switching Frequency
- ECOT Mode Control with Fast Transient Response
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Continuous Conduction Mode (CCM)
- Internal Soft-Start
- 63mΩ/36mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.805V
- Short Protection with Hiccup-Mode
- Integrated internal compensation
- Thermal Shutdown
- Available in SOT563 Package
- -40°C to +85°C Temperature Range
