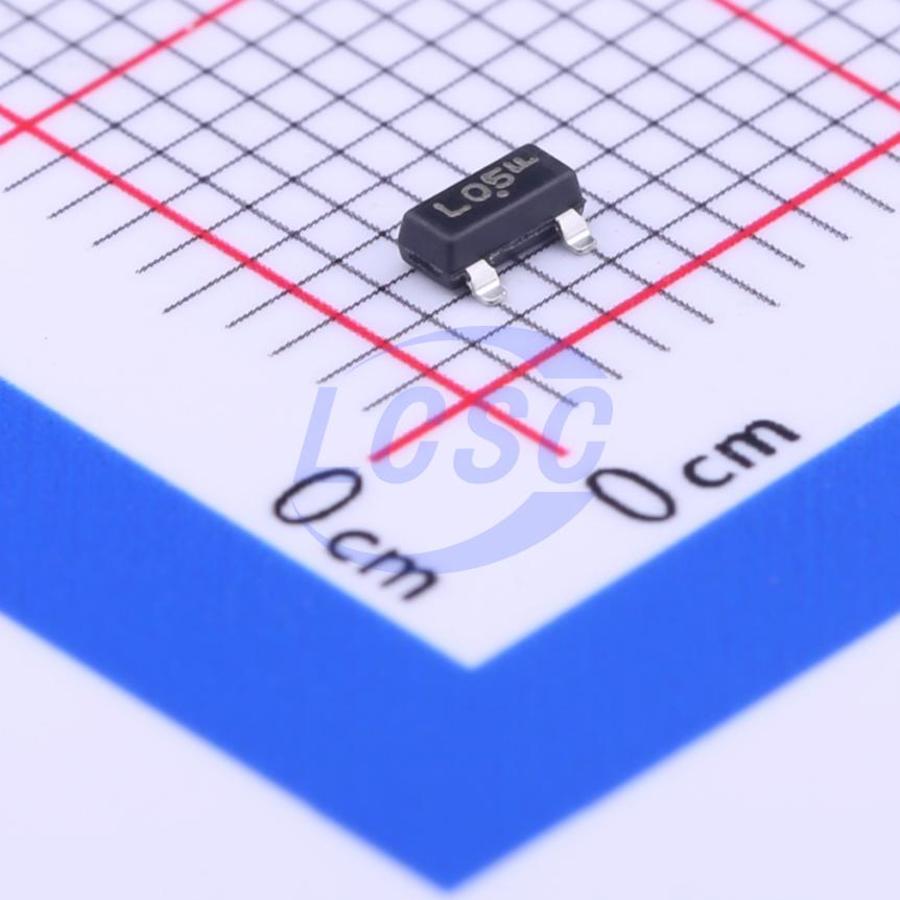

SL05T1G
11VC Clamp 17A@8/20us Ipp ESD DIODE SOT-23
ESD DIODE 5VWM 11VC SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- SL05T1G
- Store part #
- C233424
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,150 in stock
#C233424
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.69 | ₹88.45 |
| 50+ | ₹13.87 | ₹693.50 |
| 150+ | ₹11.95 | ₹1,792.50 |
| 500+ | ₹10.50 | ₹5,250.00 |
| 3,000+ | ₹9.37 | ₹28,110.00 |
| 6,000+ | ₹8.78 | ₹52,680.00 |
5 × ₹17.69
₹88.45
excl. GST
₹104.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL05T1G
₹88.45 for 5 + GST
Specifications
- Clamping Voltage
- 11V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 17A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 300W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 20uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
This family of surge protection offers transient overvoltage protection with significantly reduced capacitance. The capacitance is lowered by integrating a compensating diode in series. This integrated solution offers ESD protection for high speed interfaces such as communication systems, computers, and computer peripherals.
Applications
- communications systems
- computers
- computer peripherals
- high speed I/O data lines
- multiple I/O lines
Key features
- Surge protection Diode in Series with a Compensating Diode Offers <5 pF Capacitance
- ESD Protection Meeting IEC 61000−4−2, 4−4, 4−5
- Peak Power Rating of 300 W, 8×20 μs
- Bi−Direction Protection Can Be Achieved By Using Two Devices
- Flammability Rating UL 94 V−0
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
