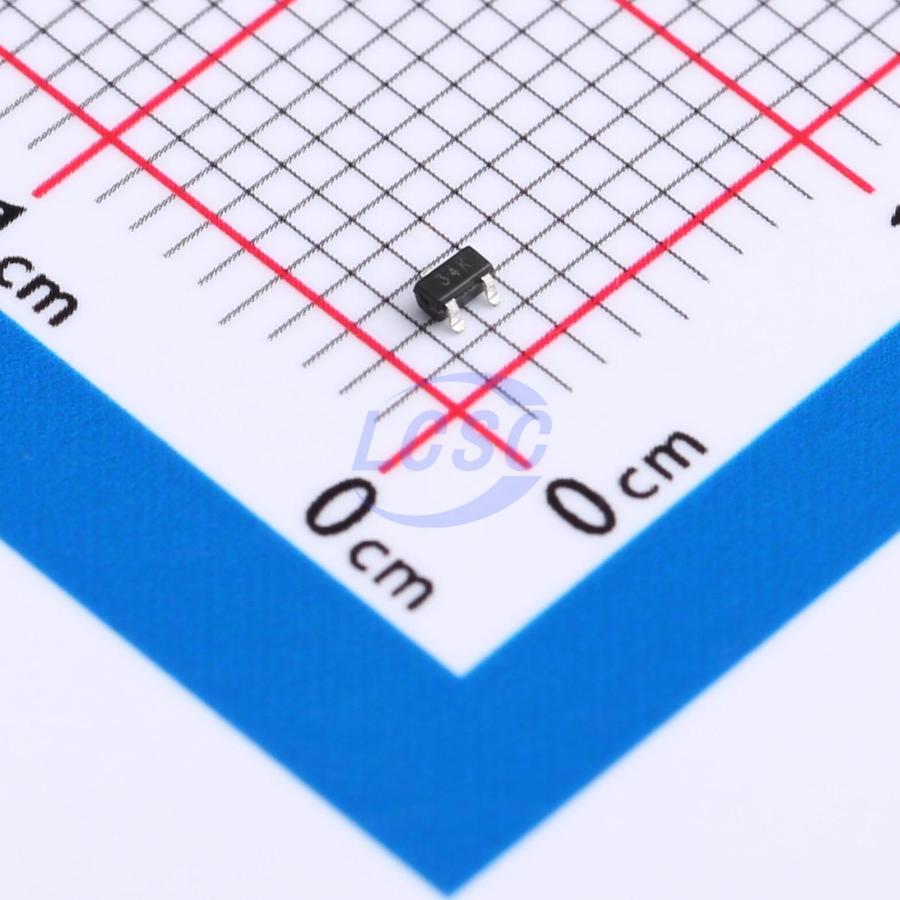

SL3134K
N-Channel 20V 0.75A 0.15W Surface Mount SOT-523
SOT-523ROHS3 CompliantActive
MOSFET N-CH 20V 0.75A SOT-523
- Manufacturer
- Slkor
- Manufacturer part #
- SL3134K
- Store part #
- C2965533
- Package / case
- SOT-523
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C2965533
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.43 | ₹88.60 |
| 200+ | ₹3.49 | ₹698.00 |
| 600+ | ₹2.98 | ₹1,788.00 |
| 3,000+ | ₹2.49 | ₹7,470.00 |
| 9,000+ | ₹2.21 | ₹19,890.00 |
| 21,000+ | ₹2.06 | ₹43,260.00 |
20 × ₹4.43
₹88.60
excl. GST
₹104.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SL3134K
₹88.60 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 18pF
- Ciss-Input Capacitance
- 110pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 750mA
- Reverse Transfer Capacitance (Crss)
- 15pF
- RDS(on)
- 350mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.1nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
- Trench Power LV MOSFET technology - High Power and current handing capability
Applications
- Load/Power Switching
- Interfacing Switching
- Logic Level Shift
Key features
- Drain-Source Voltage (VDS) 20V
- Drain Current (ID) 0.75A
- Drain-Source On-Resistance RDS(ON) (VGS = 4.5V) < 350mΩ
- Drain-Source On-Resistance RDS(ON) (VGS = 2.5V) < 500mΩ
- ESD protection up to 3.0KV (Human Body Model HBM)
