TECH PUBLIC

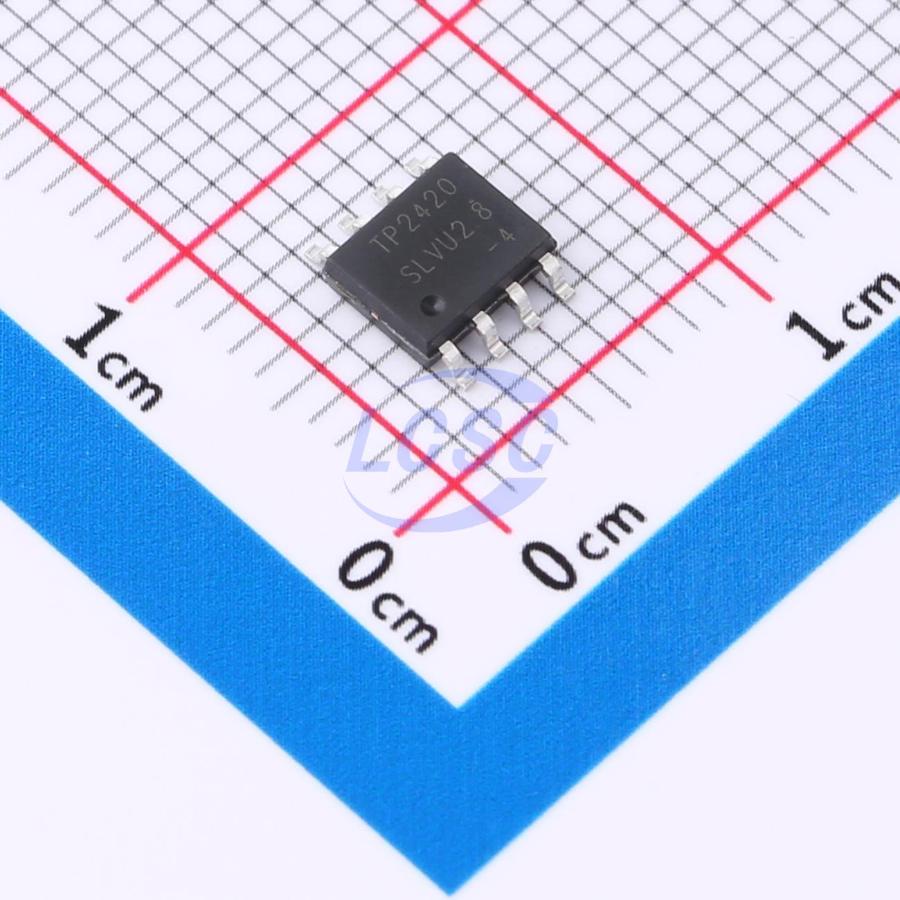

SLVU2.8-4A1-TP

6VC Clamp 17A@8/20us Ipp SOP-8

SOP-8RoHSActive

2.8VWM 6VC SOP-8

Manufacturer: TECH PUBLIC
Manufacturer part #: SLVU2.8-4A1-TP
Store part #: C47117560
Package / case: SOP-8
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,135 in stock

#C47117560

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
5+	₹32.19	₹160.95
50+	₹25.14	₹1,257.00
150+	₹22.12	₹3,318.00
500+	₹18.35	₹9,175.00
2,500+	₹16.67	₹41,675.00
5,000+	₹15.66	₹78,300.00

Quantity (min 5, multiples of 5)

5 × ₹32.19

₹160.95

excl. GST

₹189.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

SLVU2.8-4A1-TP

₹160.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 15V
Operating Temperature: -40℃~+125℃
Peak Pulse Current (Ipp): 17A@8/20us
Peak Pulse Power Dissipation (Ppp): 300W@8/20us
Voltage - Breakdown: 3V
Number of Channels: Four channels
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 2.8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.193 g

Overview

Applications

Base Station
Analog Inputs
Switch Systems
10/100/1000 Ethernet
WAN/LAN Equipment
Desktops, Servers, and Notebooks
Low Voltage Interfaces

Key features

300VW peak pulse power(8/20μs)
Protects two line pairs(four lines)
Ultra low leakage: nA level
Low operating voltage: 2.8V
Low capacitance
Ultra low clamping voltage
JEDEC SO-8 package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 17A (8/20μs)
RoHS Compliant
