TECH PUBLICDatasheet (PDF)

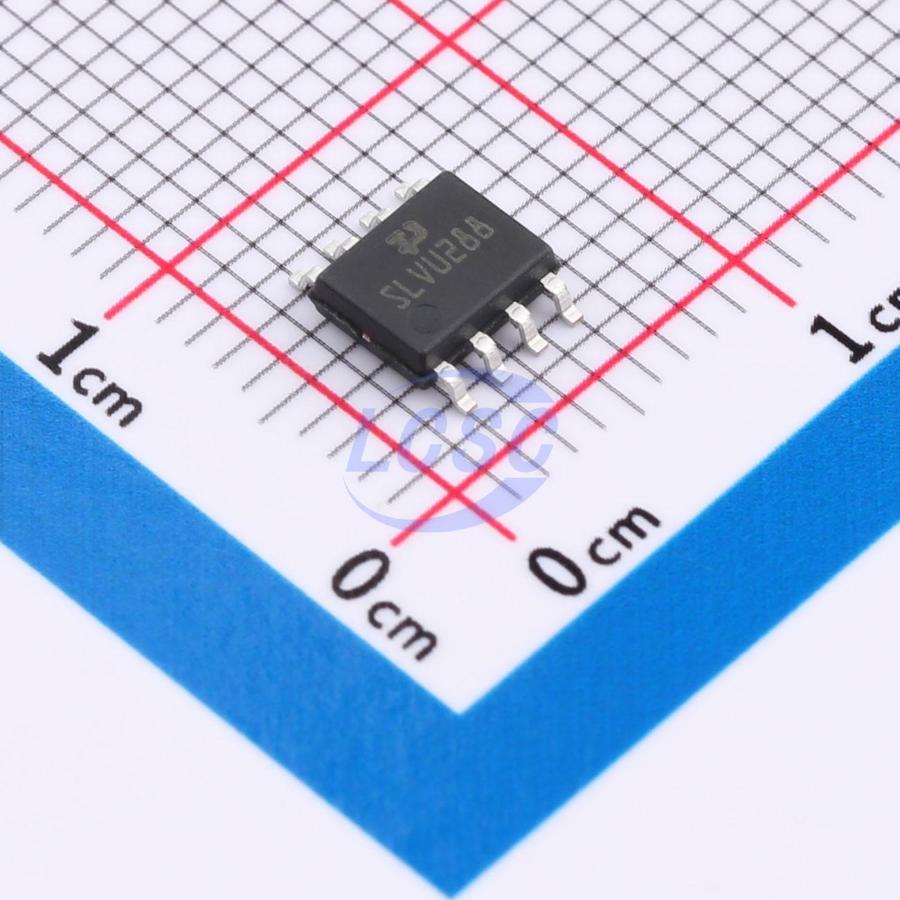

SLVU2.8-8A1
6VC 8VC 10VC 17VC Clamp 20A@8/20us Ipp SO-8
SO-8RoHSActive
2.8VWM 6VC 8VC 10VC 17VC SO-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SLVU2.8-8A1
- Store part #
- C20617294
- Package / case
- SO-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,896 in stock
#C20617294
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.84 | ₹62.84 |
| 10+ | ₹55.66 | ₹556.60 |
| 30+ | ₹52.18 | ₹1,565.40 |
| 100+ | ₹48.71 | ₹4,871.00 |
| 500+ | ₹46.53 | ₹23,265.00 |
| 1,000+ | ₹45.45 | ₹45,450.00 |
1 × ₹62.84
₹62.84
excl. GST
₹74.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SLVU2.8-8A1
₹62.84 for 1 + GST
Specifications
- Clamping Voltage
- 17V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 2.8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.206 g
Overview
Applications
- 10/100 Ethernet
- WAN/LAN Equipment
- Switching Systems
- DSLAMs
- Desktops, Severs, & Notebooks
- Instrumentation
- Base Stations
- Analog Inputs
Key features
- 400W peak pulse power(8/20μs)
- Protects four line pairs(eight lines)
- High peak pulse current
- Comprehensive pin out for easy board layout
- Low capacitance
- Low leakage current
- Low operating and clamping voltages
- Complies with following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV - IEC61000-4-4 (EFT) 40A (5/50ns) - IEC61000-4-5 (Lightning) 20A (8/20μs)
- RoHS Compliant
