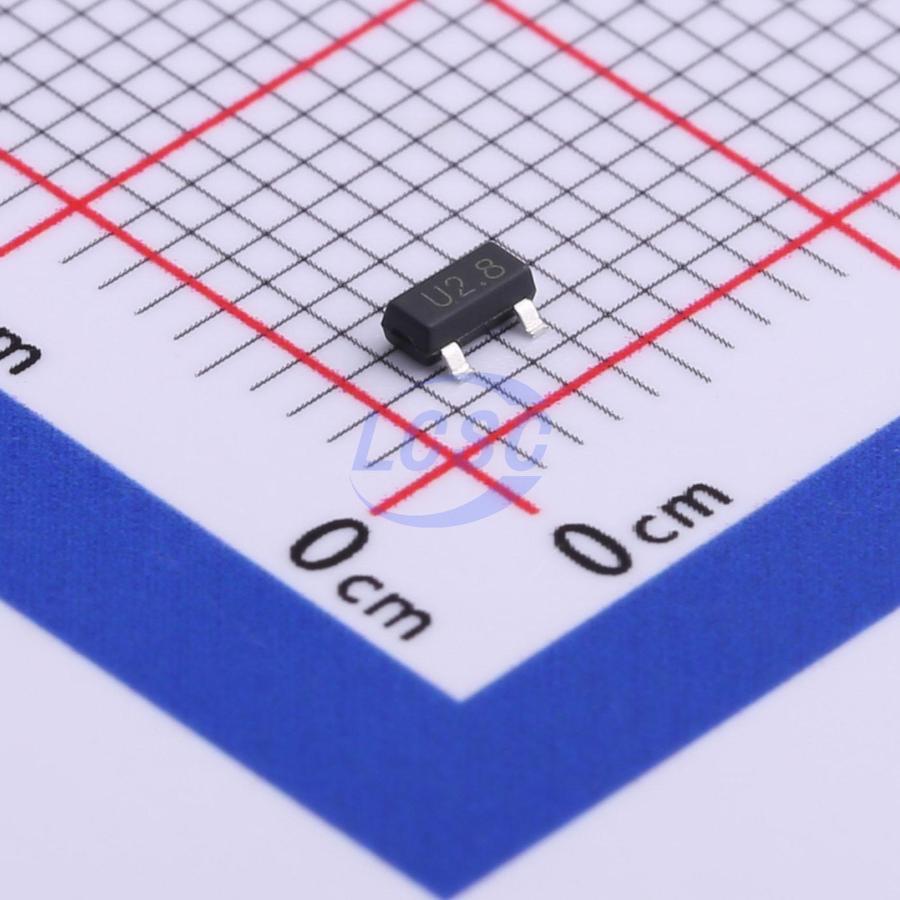

TECH PUBLIC

SLVU2.8-TP

8VC Clamp 10A@8/20us Ipp SOT-23

SOT-23RoHSActive

2.8VWM 8VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: SLVU2.8-TP
Store part #: C587137
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,960 in stock

#C587137

Stock & price checked 14 days ago

Quantity	Unit price	Pack price
5+	₹12.36	₹61.80
50+	₹9.95	₹497.50
150+	₹8.75	₹1,312.50
500+	₹7.85	₹3,925.00
3,000+	₹6.30	₹18,900.00
6,000+	₹5.94	₹35,640.00

Quantity (min 5, multiples of 5)

5 × ₹12.36

₹61.80

excl. GST

₹72.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SLVU2.8-TP

₹61.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 8V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 10A@8/20us
Peak Pulse Power Dissipation (Ppp): 150W@8/20us
Voltage - Breakdown: 3V
Number of Channels: 1
type: ESD
Reverse Leakage Current (Ir): 500nA
Polarity: Unidirectional
Reverse Stand-Off Voltage (Vrwm): 2.8V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.029 g

Overview

Applications

Base Station
Analog Inputs
Switch Systems
10/100 Ethernet WAN/LAN Equipment

Key features

150W peak pulse power(8/20µs)
One device protects one unidirectional line
Two devices protect two high-speed line pairs
Ultra low leakage: nA level
Low operating voltage: 2.8V
Low capacitance
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 10A (8/20µs)
RoHS Compliant
