TECH PUBLICDatasheet (PDF)

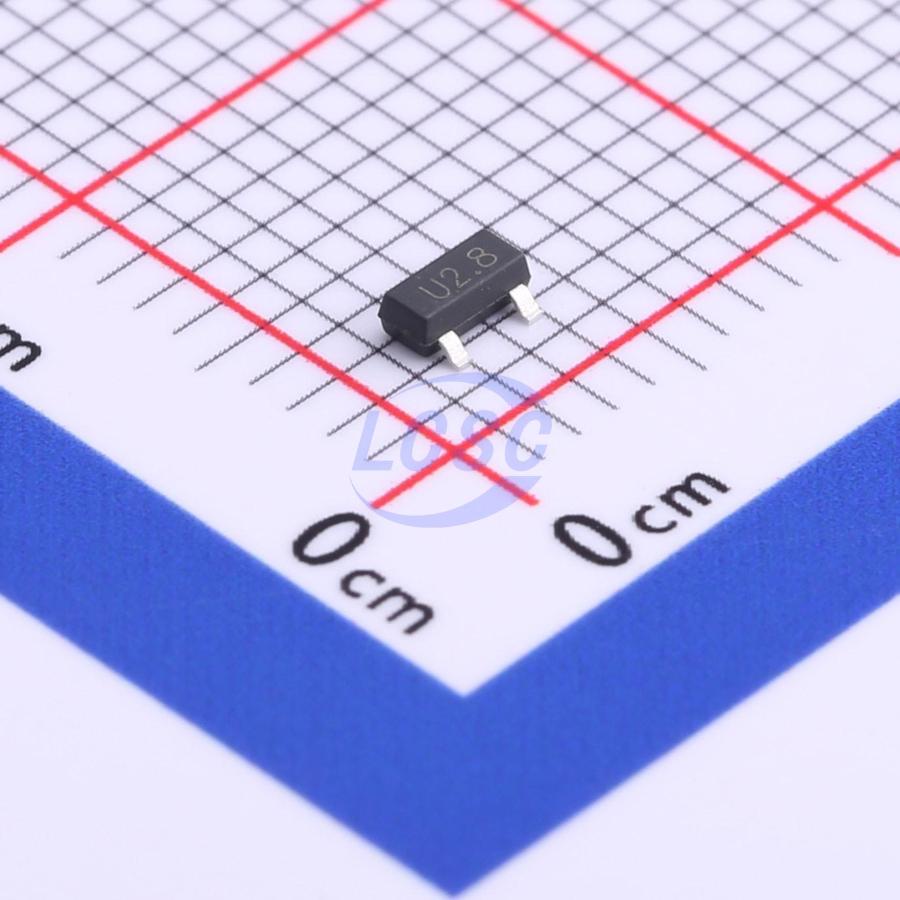

SLVU2.8S3
8VC Clamp 10A@8/20us Ipp SOT-23
SOT-23RoHSActive
2.8VWM 8VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SLVU2.8S3
- Store part #
- C708765
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,545 in stock
#C708765
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.18 | ₹55.90 |
| 50+ | ₹8.78 | ₹439.00 |
| 150+ | ₹7.58 | ₹1,137.00 |
| 500+ | ₹6.68 | ₹3,340.00 |
| 3,000+ | ₹5.97 | ₹17,910.00 |
| 6,000+ | ₹5.60 | ₹33,600.00 |
5 × ₹11.18
₹55.90
excl. GST
₹65.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SLVU2.8S3
₹55.90 for 5 + GST
Specifications
- Clamping Voltage
- 8V
- Peak Pulse Current (Ipp)
- 10A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 1
- Voltage - Breakdown
- 3V
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 2.8V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Overview
Applications
- Base Station
- Analog Inputs
- Switch Systems
- 10/100 Ethernet
- WAN/LAN Equipment
Key features
- 150W peak pulse power(8/20μs)
- One device protects one unidirectional line
- Two devices protect two high-speed line pairs
- Ultra low leakage: nA level
- Low operating voltage: 2.8V
- Low capacitance
- Ultra low clamping voltage
- Complies with following standards:
- IEC 61000-4-2(ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4(EFT) 40A (5/50ns)
- IEC61000-4-5(Lightning) 10A (8/20μs)
- RoHS Compliant
