TECH PUBLICDatasheet (PDF)

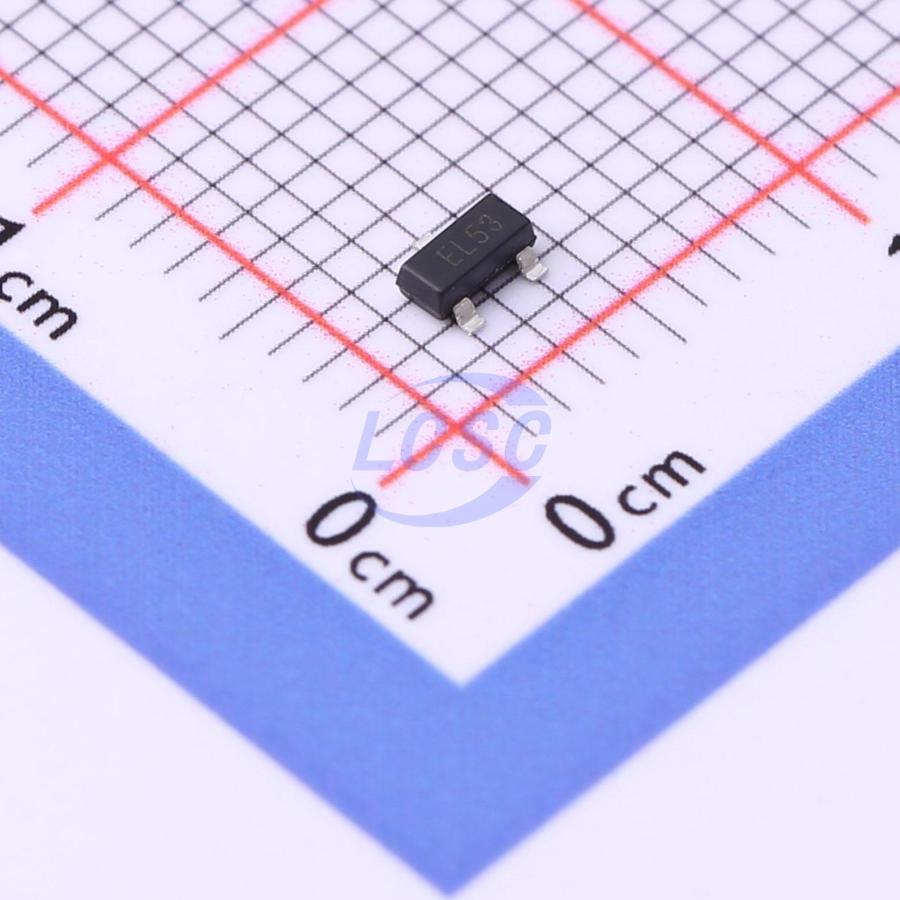

SM03
15VC Clamp 20A@8/20us Ipp SOT-23
SOT-23RoHSActive
3.3VWM 15VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SM03
- Store part #
- C3021107
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C3021107
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.53 | ₹110.60 |
| 200+ | ₹4.48 | ₹896.00 |
| 600+ | ₹3.96 | ₹2,376.00 |
| 3,000+ | ₹3.25 | ₹9,750.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
| 21,000+ | ₹2.79 | ₹58,590.00 |
20 × ₹5.53
₹110.60
excl. GST
₹130.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SM03
₹110.60 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 20A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 5V
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set Top Box
- Industrial Controls
Key features
- 400w peak pulse power(8/20us)
- Protects one bi-directional or two uni-directional lines
- Ultra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2(ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4(EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 20A(8/20μs)
- RoHS Compliant
